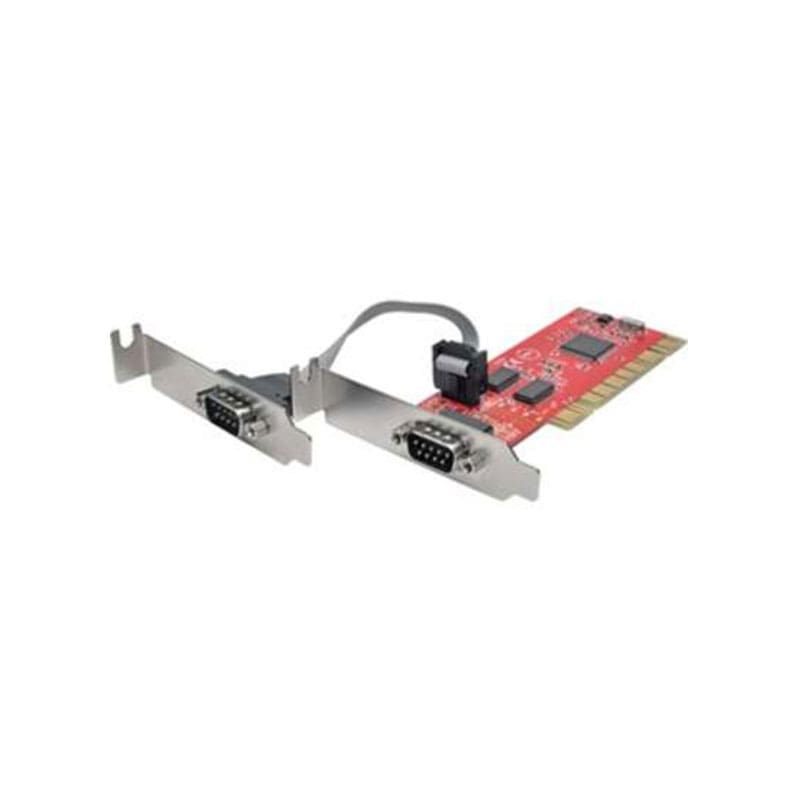

PCI-D9-02-LP Tripp Lite 2-Port Serial Adapter Card DB9 RS232 PCI Low Profile
PCI-D9-02-LP Overview
the PCI-D9-02-LP supports data transfer rates up to 115.2 Kbps on each port. It easily installs inside your computer in just a few minutes. The low-profile bracket’s interface is compatible with universal 3.3V and 5V 32-bit PCI/PCI-X slots. Allow the appropriate drivers to automatically install on your hard drive (a driver CD is included if they don’t), and connect DB9 serial extension cables (such as Tripp Lite’s P520-006) to the card’s DB9 connectors.
$26.00
Shipping calculated at checkout.
PCI-D9-02-LP Technical Specifications
Tripp Lite 2-Port Serial Adapter Card DB9 RS232 PCI Low Profile
| Brand | Tripp Lite |
|---|---|
| Product Line | Tripp Lite |
| Model | 2-Port DB9 RS232 PCI Serial Adapter Card Low Profile |
| Manufacturer | Tripp Lite |
Network & Communication
| Bus Voltage | Universal (3.3 V & 5.0 V) |
|---|---|
| Connectivity Technology | Wired |
| Data Link Protocols | RS-232 |
| Data Transfer Rate | 115.2 Kbps |
| Features | 16550 UART support |
| Form Factor | Plug-in card |
| Host Interface | PCI-X |
| Low Profile | Low profile |
| PCI Specification Revision | PCI 2.3 |
| Product Type | Serial adapter |
Connectivity
| Interface Provided | 2 x RS-232 – 9 pin D-Sub (DB-9) |
|---|---|
| Port Quantity | 2 |
| Network & Adapter Ports | RS-232 |
Software
| Software Type | Driver |
|---|
Technical Information
| Operating System Required | Linux, Microsoft Windows |
|---|
Product Information
| Packaged Quantity | 1 |
|---|
Physical Characteristics
| Color | Red |
|---|---|
| Color Category | Red, Silver |
Certifications & Listings
| Compliant Standards | RoHS |
|---|
