ONS-SE-2G-S1 Technical Specifications

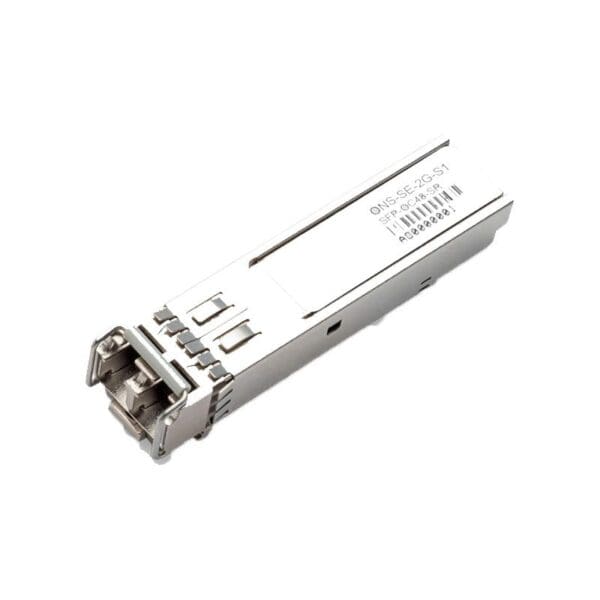

Cisco 2.5Gbps OC-48/STM-16 Single-mode Fiber 2km 1310nm Duplex LC Connector SFP (mini-GBIC) Transceiver Module
General Information
| Manufacturer | Cisco Systems, Inc |
|---|---|
| Manufacturer Part Number | ONS-SE-2G-S1 |
| Brand Name | Cisco |
| Product Name | OC-48/STM-16 Short Reach SFP Module |
| Product Type | SFP (mini-GBIC) |
Technical Information
| Application/Usage | Data Networking |
|---|
Interfaces/Ports
| Interfaces/Ports Details | 1 x LC Duplex OC-48/STM-16 |
|---|
Media & Performance
| Media Type | Supported Optical Fiber |
|---|---|
| Fiber Optic Cable Standard | 9 µm |
| Fiber Mode Supported | Single-mode Fiber (SMF) |
| Maximum Data Transfer Rate | 2.49 Gbit/s |
Miscellaneous
| Additional Information |
|
|---|---|
| Wavwlength | 1310 nm |
| Transmitter Output Power Min/Max (dBm) | -10 to -3 |
| Receiver Input Power Min/Max (dBm) | -18 to -3 |
| Distance | 2 km (1.2 miles) |
Compatibility
| ONS 15454 SONET/SDH Platform with | MRC-12 Card, MXP_2.5G_10G Card, MXPP_2.5G_10G Card, MXP_2.5G_10E Card, MXP_2.5G_10E_L Card, MXP_2.5G_10E_C Card |
|---|
