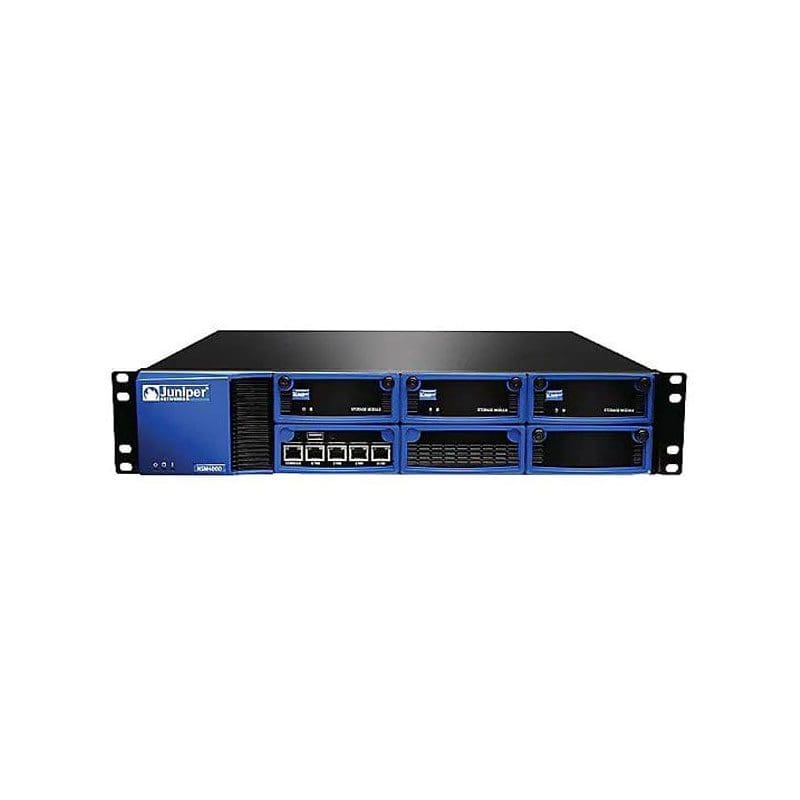

NS-SM-XL-B-BSE Technical Specifications
Juniper Networks Network and Security Manager 4000 network management
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks Network and Security Manager |
| Model | :4000 |
| Packaged Quantity | :1 |
Processor
| Type | Xeon E3-1200 v2 series |
|---|---|
| Processor Number | E3-1225V2 |
| Installed Qty | :1 |
| Manufacturer | Intel |
| Clock Speed | :3.2 GHZ |
RAM
| Technology | DDR3 SDRAM |
|---|---|
| Installed Size | :32 GB |
| Storage | Controller |
| RAID Level | RAID 10 |
Hard Drive
| Type | HDD |
|---|---|
| Hot-Swap | Hot-swap |
| Interface Type | Serial Attached SCSI |
| Installed Qty | :6 |
| Capacity | :1 TB |
Capacity
| Capacity :Maximum number of managed appliances | 1500 |
|---|
Networking
| Type | Network management device |
|---|---|
| Form Factor | Rack-mountable |
| Ports Qty | :4 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Hot swappable fan |
Expansion Slots
| Expansion Slots | :2 (total) / 2 (free) x expansion slot (full-height) |
|---|
Interface Provided
| Interfaces | :1 x USB – Type A, 4 x 1000Base-T (management) – RJ-45, 1 x console – RJ-45 |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Power Redundancy | Optional |
| Installed Qty | :1 |
| Max Supported Qty | :2 |
| Power Provided | :250 watt |
| Nominal Voltage | AC 100/230 V |
| Frequency Required | :50/60 hertz |
System Requirements
| OS Required | JUNOS |
|---|
Miscellaneous
License Qty :25 devices
| Height (Rack Units) | :2 |
|---|---|
| Compliant Standards | EN 60825-1:2001, VCCI Class A, EN 60825-2:2000, FCC Class A certified, EN 55022 Class A, UL 60950-1:2003, CSA C22.2 No. 60950-1, IEC 60950-1:2001, EN60950-1:2001, EN 61000-3-2, EN 55024 Class A, EN 60825+A1+A2:1994 |
Dimensions & Weight
| Width | :17.7 inch |
|---|---|
| Depth | :17.3 inch |
| Height | :3.5 inch |
| Weight | :27.56 lbs |
Environmental Parameters
| Min Operating Temperature | :41 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :8 – 90% (non-condensing) |
