NS-ISG-2000 Technical Specifications

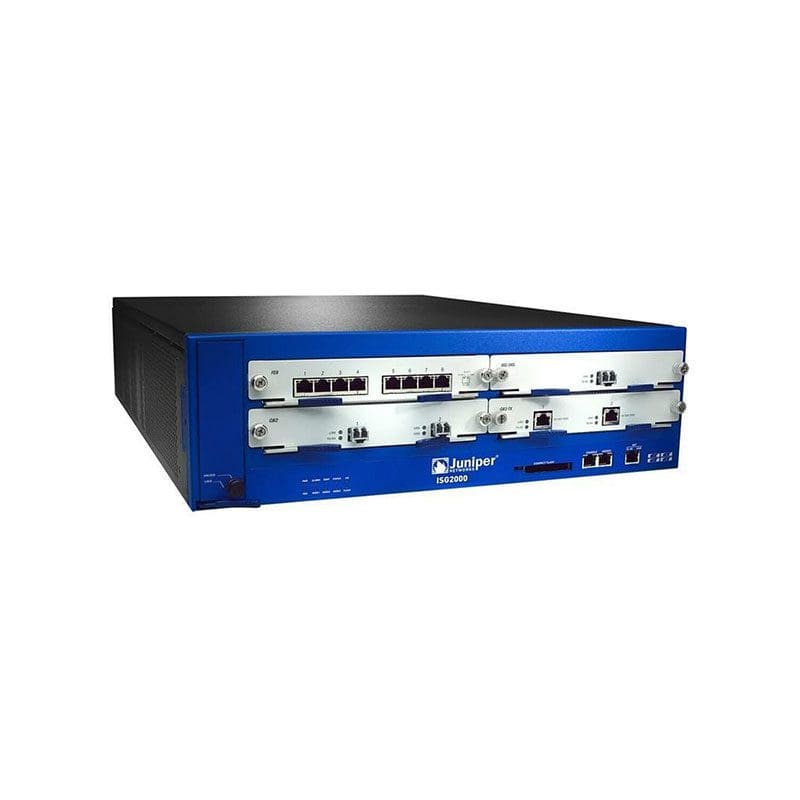

Juniper Networks ISG 2000 Advanced security appliance
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks NetScreen |
| Model | ISG 2000 Advanced |
| Packaged Quantity | :1 |
Optical Storage
| Type | None |
|---|
Card Reader
| Supported Flash Memory Cards | CompactFlash Card |
|---|
Networking
| Type | Security appliance |
|---|---|
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Routing Protocol | RIP-2, BGP, Static IP routing, OSPF |
| Network / Transport Protocol | PPPoE, IPSec, L2TP |
| Remote Management Protocol | SNMP, HTTP, SNMP 2, HTTPS |
| Features | URL filtering, Firewall protection, Transparency, DHCP support, Intrusion Prevention System (IPS), PAT support, VPN support, High Availability, Syslog support, Deep Packet Inspection (DPI), Intrusion Detection System (IDS), DoS attack prevention, LDAP support, DiffServ support, Routing, VLAN support, NAT support |
IP Telephony
| VoIP | Yes |
|---|---|
| VoIP Protocols | SIP, H.323, MGCP, SCCP |
Expansion Slots
| Expansion Slots | :4 (total) / 4 (free) x expansion slot |
|---|
OS Provided
| Type | ScreenOS |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Hot-Plug | Hot-plug |
| Installed Qty | :2 |
| Max Supported Qty | :2 |
| Power Provided | :250 watt |
| Nominal Voltage | AC 120/230 V |
Miscellaneous
| Encryption Algorithm | DES, RSA, MD5, Triple DES, AES, SHA-1, IKE |
|---|---|
| Authentication Method | RADIUS, LDAP, X.509 certificates, Secure Shell v.2 (SSH2) |
| Compliant Standards | UL, cUL, FCC Class B certified, CSA, CB, C-Tick, VCCI Class A ITE, BSMI |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :23 inch |
| Height | :5.2 inch |
| Weight | :52.03 lbs |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :122 degree Fahrenheit |
| Humidity Range Operating | :10 – 90% |
