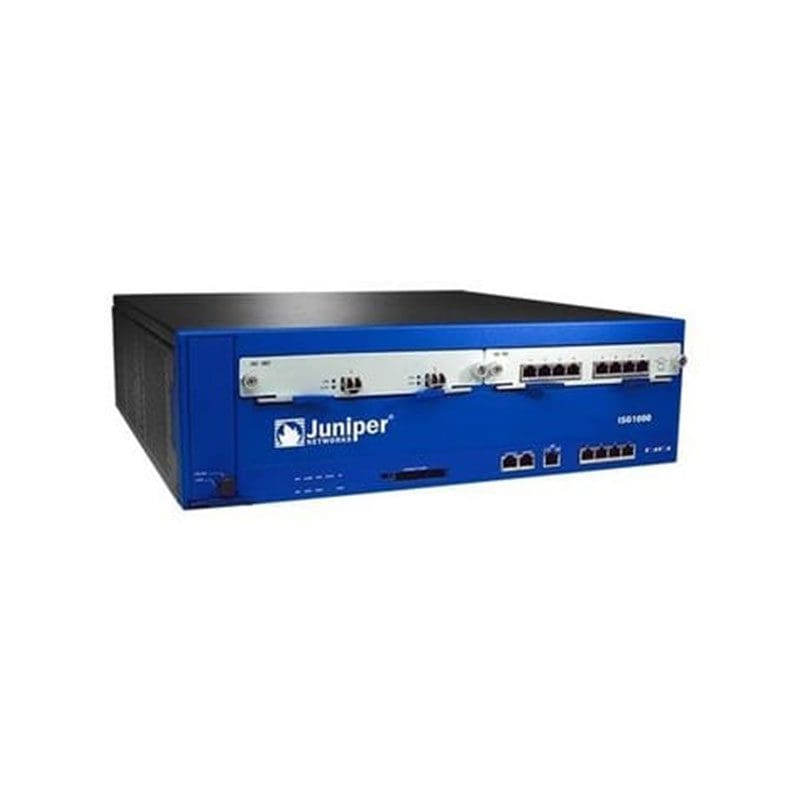

NS-ISG-1000B Juniper Networks ISG 1000 Integrated Security Gateway

Brand:

NS-ISG-1000B Overview

The Juniper Networks Integrated Security Gateways (ISG) are purpose-built security solutions that leverage a fourth generation security ASIC, the GigaScreen, along with high-speed microprocessors to deliver unmatched firewall and VPN performance. The Juniper Networks ISG 1000 is ideally suited for securing enterprise, carrier and data center environments where advanced applications such as VoIP and streaming media dictate consistent, scalable performance. Integrating best-in-class Deep Inspection firewall, VPN and Dos solutions, the ISG 1000 enables secure, reliable connectivity along with network and application-level protection for critical, high-traffic network segments.

$15,989.00

Shipping calculated at checkout.
or
SKU: NS-ISG-1000B Categories: Brand:

NS-ISG-1000B Technical Specifications

Juniper Networks ISG 1000 Integrated Security Gateway

Manufacturer Netscreen
Brand Juniper, Juniper Networks
Product Line Juniper Networks NetScreen
Model ISG 1000 Baseline
Packaged Quantity :1

Optical Storage

Type None

Card Reader

Supported Flash Memory Cards CompactFlash Card

Performance

Performance :Firewall throughput 1 Gbps, 3DES throughput: 1 Gbps

Capacity

Capacity :Connection / user qty unlimited, Authenticated users (internal database): 5000, Concurrent VPN tunnels: 1000, Static routes: 10000, Security policies: 10000, Concurrent sessions: 125000

Networking

Type Security appliance
Form Factor Rack-mountable
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol RIP-1, Static IP routing, RIP-2
Network / Transport Protocol PPPoE, IPSec, L2TP
Remote Management Protocol HTTPS, SNMP 2, SNMP, HTTP
Features Transparency, URL filtering, High Availability, VPN support, Routing, 56-bit encryption, Modular design, 168-bit encryption, DiffServ support, Firewall protection, VLAN support, DHCP support, DoS attack prevention, Syslog support, NAT support, LDAP support, PAT support
Compliant Standards X.509

IP Telephony

VoIP Yes
VoIP Protocols SIP, MGCP, SCCP, H.323

Expansion Slots

Expansion Slots :2 (total) / 2 (free) x expansion slot

Interface Provided

Interfaces :1 x management – RJ-45, 4 x 1000Base-T – RJ-45

OS Provided

Type ScreenOS

Power Device

Type Internal power supply
Power Provided :250 watt
Nominal Voltage AC 120/230 V

Miscellaneous

Encryption Algorithm RSA, MD5, IKE, Triple DES, SHA-1, PKI, AES, DES
Authentication Method Secure Shell v.2 (SSH2), X.509 certificates, LDAP, RADIUS
Compliant Standards C-Tick, FCC Class B certified, BSMI, CB, VCCI Class A ITE, cUL, UL, CSA

Dimensions & Weight

Width :17.5 inch
Depth :17.2 inch
Height :5.2 inch
Weight :29.98 lbs

Environmental Parameters

Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :122 degree Fahrenheit
Humidity Range Operating :10 – 90%
