NS-5200 Technical Specifications

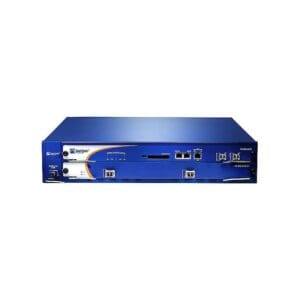

Juniper Networks NetScreen 5200 security appliance
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks NetScreen |
| Model | :5200 |
| Packaged Quantity | :1 |
Optical Storage
| Type | None |
|---|
Capacity
| Capacity :Authenticated users (internal database) | 25000, VPN tunnels: 16000, Concurrent VPN tunnels: 25000, VPN tunnel interfaces: 4095 |
|---|
Networking
| Type | Security appliance |
|---|---|
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Routing Protocol | OSPF, RIP-1, Static IP routing, RIP-2, IGMP |
| Network / Transport Protocol | L2TP, PPPoE, IPSec, VoIP |
| Remote Management Protocol | SNMP 1, HTTP, SNMP 2 |
| Features | DHCP support, DDos attack prevention, PAT support, NAT support, Syslog support, Modular design, DoS attack prevention, Firewall protection |
IP Telephony
| VoIP | Yes |
|---|---|
| VoIP Protocols | SCCP, MGCP, SIP, H.323 |
Expansion Slots
| Expansion Slots | :2 (total) / 2 (free) x expansion slot |
|---|
OS Provided
| Type | ScreenOS |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Hot-Plug | Hot-plug |
| Installed Qty | :2 |
| Max Supported Qty | :2 |
| Power Provided | :150 watt |
| Nominal Voltage | AC 120/230 V |
Miscellaneous
| Encryption Algorithm | AES, Triple DES, MD5, SHA-1, PKI, DES, IKE, RSA |
|---|---|
| Authentication Method | SecurID, LDAP, X.509 certificates, RADIUS, Secure Shell (SSH) |
| Compliant Standards | CB, FCC Class A certified, VCCI Class A ITE, BSMI, EMC, NEBS level 3, cUL, C-Tick, UL, CSA |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :20 inch |
| Height | :3.4 inch |
| Weight | :37.04 lbs |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :113 degree Fahrenheit |
| Humidity Range Operating | :10 – 90% |
