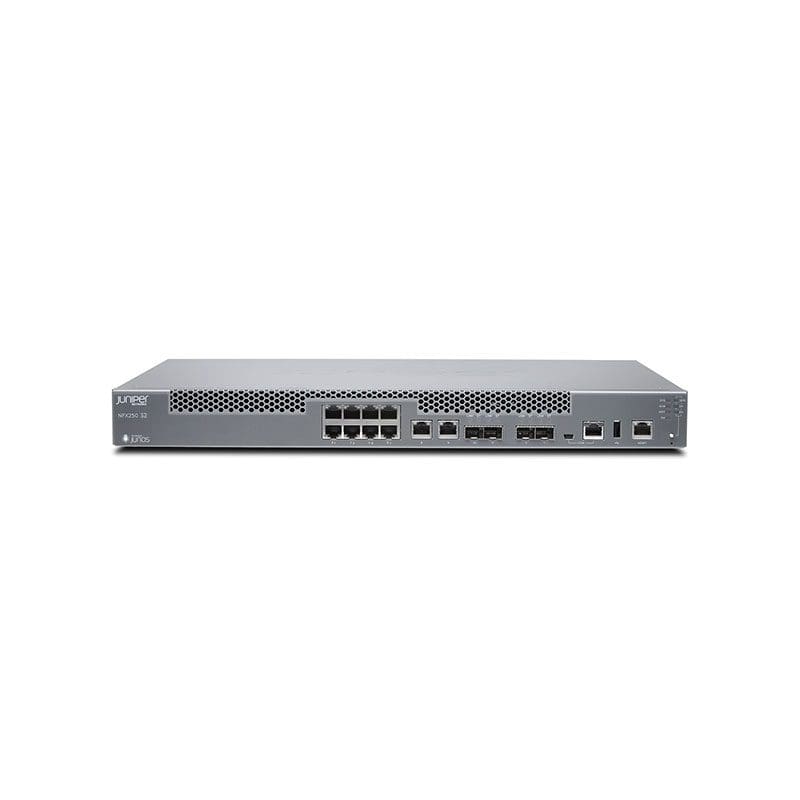

NFX250-S2 Technical Specifications
Juniper Networks NFX250 Network Services Platform application accelerator
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks |
| Model | NFX250 Network Services Platform |
| Packaged Quantity | :1 |
Chassis
| Airflow Direction | Front to back airflow |
|---|
Processor
| Type | Six-Core Xeon D, Xeon |
|---|---|
| Installed Qty | :1 |
| Max Supported Qty | :1 |
| Manufacturer | Intel |
RAM
| Technology | DDR4 SDRAM |
|---|---|
| Installed Size | :32 GB |
Hard Drive
| Type | SSD |
|---|---|
| Capacity | :400 GB |
Performance
| Performance :VNF capacity | 20 Gbps, Forwarding performance: 88 Gbps |
|---|
Capacity
| Capacity :MAC addresses | 16000, Maximum number of VNFs: 8, Jumbo frame size: 9216, ARP entries: 512, LAG groups: 32, IGMP snooping entries: 1000, ACL entries: 1500, MST instances: 64, Active VLANs: 1024, Maximum member ports per LAG: 8, IPv4 routes (Unicast): 512, Virtual interfaces (VLANs): 4096 |
|---|
Networking
| Type | Application accelerator |
|---|---|
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Routing Protocol | PIM-SSM, RIP-2, OSPFv2, PIM-SM, IGMPv3, Bidirectional Forwarding Detection (BFD), CIDR, IGMP, Static IPv4 routing, IGMPv2, PIM-DM, VRRP, RIP-1, OSPF |
| Network / Transport Protocol | DNS, UDP/IP, TCP/IP |
| Remote Management Protocol | SNMP 3, RMON 9, SNMP 2c, RMON 3, SNMP 1, HTTPS, TFTP, HTTP, SSH, CLI, RMON 1, Telnet, RMON 2 |
| Features | Temperature sensor, NTP time synchronization, DHCP client, DHCP relay, IGMP snooping, Layer 3 switching, Port mirroring, System log, Quality of Service (QoS), Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, DiffServ Code Point (DSCP) support, Per-VLAN Spanning Tree Plus (PVST+), ARP support, DoS attack prevention, VLAN Stacking, Tagged VLAN, Strict Priority (SP), DHCP server, DHCP proxy, SNTP support, Smoothed Deficit Weighted Round Robin (SDWRR), Virtual Route Forwarding-Lite (VRF-Lite), BOOTP support, ICMP Router Discovery Protocol (IRDP), High Availability, Class of Service (CoS), Multicast VLAN Registration (MVR), IP source guard, Spanning Tree Protocol (STP) support, Secure Copy (SCP), Management Information Base (MIB), IPv4 support, Internet Control Message Protocol (ICMP), Management Information Base (MIB) II, Layer 2 switching, Multiple VLAN Registration Protocol (MVRP), VLAN support, IP Precedence, Source-Specific Multicast (SSM), Front to back airflow, Dynamic ARP Inspection (DAI), Rapid Spanning Tree Protocol (RSTP) support, sFlow, RARP support |
| Compliant Standards | IEEE 802.1ag, IEEE 802.3ah, IEEE 802.3u, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1s, IEEE 802.3x, IEEE 802.1D, IEEE 802.3, IEEE 802.1p, IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.1ak, IEEE 802.3ab, IEEE 802.3z |
Interface Provided
| Interfaces | :8 x 1000Base-T – RJ-45, 1 x USB 2.0 – Type A, 2 x 1000Base-T – RJ-45 (WAN / LAN), 1 x mini-USB, 1 x 1000Base-T (management) – RJ-45, 1 x console – RJ-45, 2 x 10Gb Ethernet – SFP+ (WAN), 2 x 1000Base-X – SFP (mini-GBIC) (WAN) |
|---|
OS Provided
| Type | Wind River Linux 7 |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Nominal Voltage | AC 120/230 V |
System Requirements
| OS Required | JUNOS |
|---|
Miscellaneous
| Height (Rack Units) | :1 |
|---|---|
| Encryption Algorithm | TTLS, PEAP, TLS, MD5 |
| Authentication Method | Extensible Authentication Protocol (EAP), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Mtbf | :200,000 Hours |
| Compliant Standards | WEEE, TUV GS, REACH, UL 60950-1 Second Edition, EN 60825-1, CAN/CSA C22.2 No. 60950-1 Second Edition, FCC CFR47 Part 15 A, EN 55022 Class A, CB, VCCI Class A, IEC 60950-1 Second Edition, EN 60950-1 Second Edition, RoHS 6/6, CISPR 22 Class A, cUL, ICES-003 Class A, EN 300386, EN55024, EN 300 386 |
Dimensions & Weight
| Width | :17.4 inch |
|---|---|
| Depth | :12 inch |
| Height | :1.7 inch |
| Weight | :9.48 lbs |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :122 degree Fahrenheit |
| Humidity Range Operating | :5 – 90% (non-condensing) |
