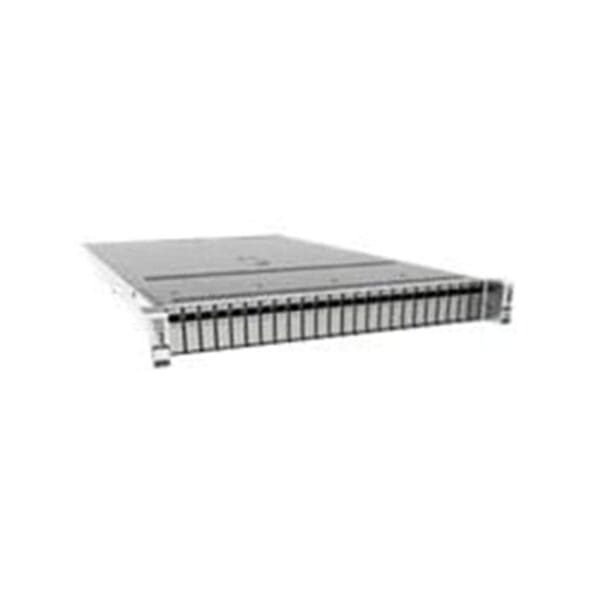

Refurbished NAM2420-K9 Technical Specifications
Cisco Prime NAM 2420 Appliance
| Brand | Cisco |
|---|---|
| Product Line | Cisco Prime Network Analysis Module |
| Model | :2420 Appliance |
| Packaged Quantity | :1 |
Processor
| Type | Xeon |
|---|---|
| Processor Number | E5-2660V3 |
| Installed Qty | :1 |
| Max Supported Qty | :1 |
| Manufacturer | Intel |
| Clock Speed | :2.6 GHZ |
RAM
| Form Factor | DIMM 288-pin |
|---|---|
| Technology | DDR4 SDRAM |
| Installed Size | :64 GB |
| Storage | Controller |
| RAID Level | RAID 1, RAID 5 |
Hard Drive
| Type | HDD |
|---|---|
| Hot-Swap | Hot-swap |
| Form Factor | :2.5″ SFF |
| Form Factor (metric) | :6.4 cm SFF |
| Interface Type | Serial ATA-300 / SAS |
| Installed Qty | :16 |
| Capacity | :1 TB |
Performance
| Performance :Full packet capture to disk | up to 11.5 Gbps, Throughput: 17 Gbps |
|---|
Capacity
| Capacity :Number of monitored client-server transactions | 400000, Number of monitored RTP streams: 20000 |
|---|
Networking
| Type | Network monitoring device |
|---|---|
| Form Factor | Rack-mountable |
| Ports Qty | :2 |
| Connectivity Technology | Wired |
| Data Link Protocol | :10 Gigabit Ethernet |
| Routing Protocol | MPLS |
| Network / Transport Protocol | NTP, RTCP, RTP, TCP/IP, UDP/IP |
| Remote Management Protocol | HTTP, HTTPS, RMON, RMON 2, SNMP 1, SNMP 2c, SNMP 3 |
| Features | DiffServ Code Point (DSCP) support, Management Information Base (MIB), Mean Opinion Score (MOS), NetFlow, Remote Switch Port Analyzer (RSPAN) |
| IP | Telephony |
| VoIP Protocols | MGCP, SCCP, SIP |
| Expansion | Bays |
| Expansion Bays | :24 (total) / 8 (free) x hot-swap – 2.5″ |
Expansion Slots
| Expansion Slots | :6 PCI Express 2.0 x16 |
|---|
Interface Provided
| Interfaces | :1 x 1000Base-T (management) – RJ-45, 1 x keyboard / video / mouse (KVM), 1 x management (RS-232) – RJ-45, 2 x 1000Base-T – RJ-45, 2 x 10GBase-X – SFP+, 2 x USB 3.0 – Type A |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Installed Qty | :1 |
| Max Supported Qty | :2 |
| Power Provided | :1200 watt |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | :50/60 hertz |
Miscellaneous
| Height (Rack Units) | :2 |
|---|---|
| Encryption Algorithm | SSL |
| Authentication Method | TACACS+ |
| Compliant Standards | AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 300386, EN 55022 Class A, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, UL 60950-1 Second Edition, VCCI Class A |
Dimensions & Weight
| Width | :17.6 inch |
|---|---|
| Depth | :29 inch |
| Height | :3.4 inch |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :10 – 90% (non-condensing) |
