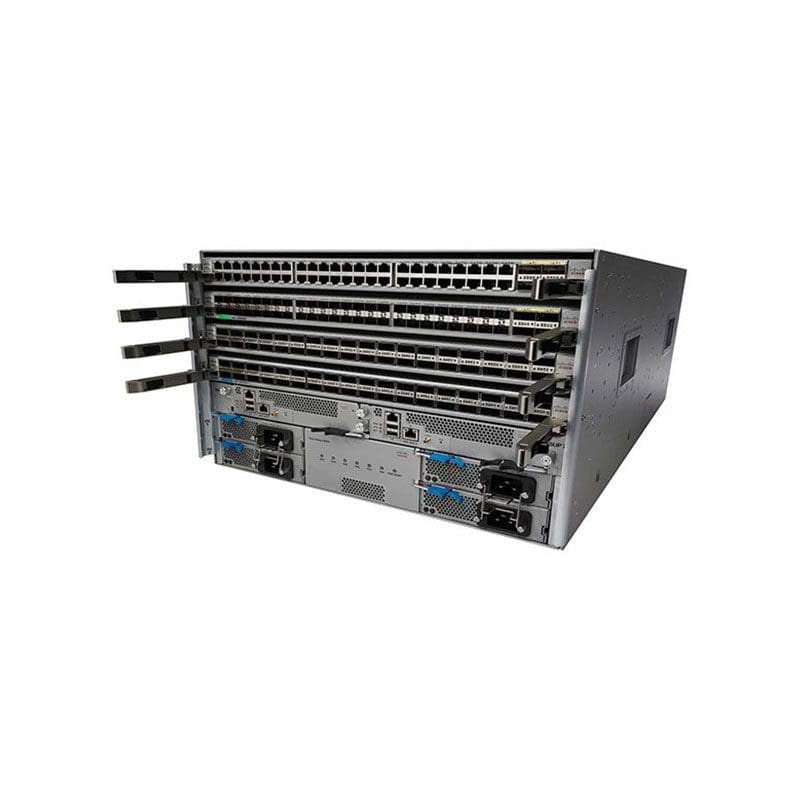

Refurbished N9K-C9504-B3-S Technical Specifications
Cisco Nexus 9504 Chassis Bundle Switch Managed Rack Mountable
Slot Provided
| Free Qty | 2 |
|---|---|
| Total Qty | 8 |
| Type | Expansion slot |
Networking
| Advanced Switching | Layer 3 |
|---|---|
| Compliant Standards | IEEE 801.1p, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z |
| Features | 3 fan trays, Access Control List (ACL) support, Auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, Class of Service (CoS), DiffServ Code Point (DSCP) support, Flow control, Link Aggregation Control Protocol (LACP), LLDP support, Load balancing, Modular design, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, RDMA support, Spanning Tree Protocol (STP) support, Unicast Storm Control, VLAN support, Weighted Random Early Detection (WRED), Weighted Round Robin (WRR) queuing |
| Form Factor | Rack-mountable |
| Manageable | Yes |
| Remote Management Protocol | RMON, SNMP 1, SNMP 2, SNMP 3, SSH-2 |
| Routing Protocol | Static IP routing |
| Subcategory | Network hubs and switches |
| Type | Switch Bundle |
Miscellaneous
| Authentication Method | RADIUS, TACACS+ |
|---|---|
| Color Category | Gray |
| Compliant Standards | AS/NZS 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438(95) Class A, CSA C22.2 No. 60950-1 Second Edition, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB 4943, ICES-003 Class A, KN22, RoHS, UL 60950-1 Second Edition, VCCI Class A |
| Height (Rack Units) | 7 |
| Included Accessories | 3 fan trays |
Environmental Parameters
| Humidity Range Operating | 5 – 95% (non-condensing) |
|---|---|
| Max Operating Temperature | 104 °F |
| Max Storage Temperature | 158 °F |
| Min Operating Temperature | 32 °F |
| Min Storage Temperature | -40 °F |
| Brand | Cisco |
|---|---|
| Bundled with | Cisco Nexus 9500 Supervisor (N9K-SUP-A), 2x Cisco Nexus 9500 System Controller (N9K-SC-A), 4x Cisco Fabric Module (N9K-C9504-FM-S) |
| Compatibility | PC |
| Manufacturer | CISCO DS HARDWARE DIRECT |
| Model | 9504 Chassis Bundle |
| Packaged Quantity | 1 |
| Product Line | Cisco Nexus |
| Product Series | N9K |
Power Device
| Features | Front-to-rear air?ow |
|---|---|
| Frequency Required | 50 – 60 Hz |
| Hot-Plug | Hot-plug |
| Installed Qty | 3 |
| Max Supported Qty | 3 |
| Nominal Voltage | AC 230 V |
| Power Provided | 3000 Watt |
| Power Redundancy | Yes |
| Type | Internal power supply |
Dimensions & Weight
| Depth | 30 in |
|---|---|
| Height | 8 in |
| Width | 17.5 in |
Capacity
| Type | Virtual interfaces (VLANs) |
|---|---|
| Value | 4096 |
Chassis
| Installed Devices Modules Qty | 6 |
|---|---|
| Supported Devices Modules Qty | 8 |
