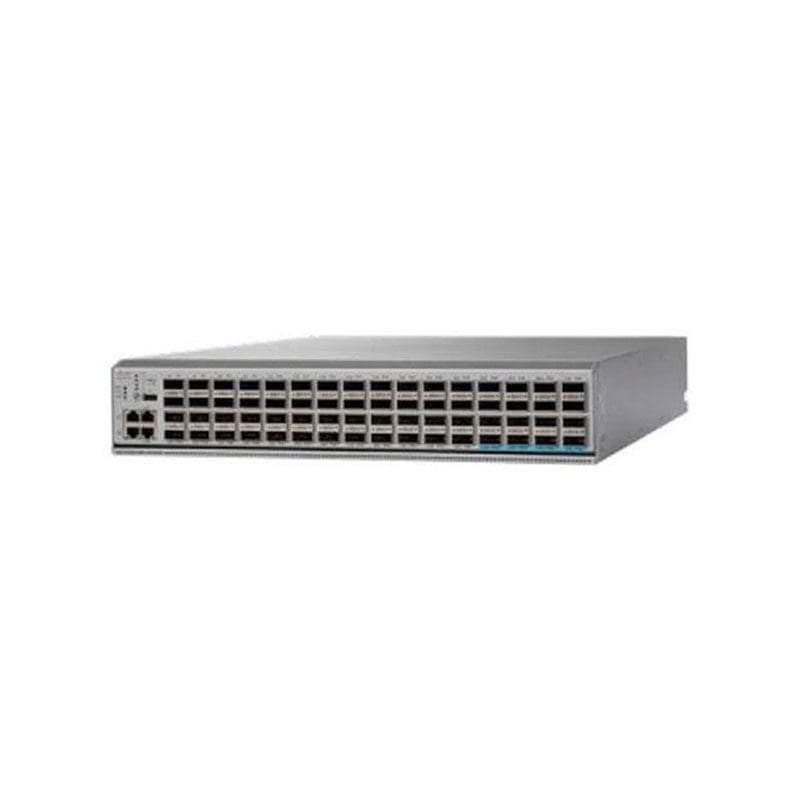

Refurbished C92304QC Technical Specifications
Nexus 9200 with 56p 40G QSFP+ and 8p 100G QSFP28
Interface Provided
| Connector Type | QSFP+ (breakout compatible) |
|---|---|
| Qty | 56 |
| Type | 40Gbit LAN |
| Connector Type | QSFP28 |
| Qty | 8 |
| Type | 100Gbit LAN |
| Connector Type | RJ-45 |
| Qty | 3 |
| Type | Management |
| Qty | 1 |
| Type | USB |
| Type | Serial (RS-232) |
Networking
| Advanced Switching | Layer 3 |
|---|---|
| Features | Access Control List (ACL) support, Hot Standby Router Protocol (HSRP) support, IGMP snooping, Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Rapid Spanning Tree (PVRST), Port exhaust, Virtual Routing and Forwarding (VRF), VLAN support, VXLAN tunnel endpoints (VTEP) support |
| Form Factor | Desktop, Rack-mountable |
| MAC Address Table Size | 96K entries |
| Manageable | Yes |
| Ports Qty | 56 |
| Routing Protocol | BGP, ECMP, EIGRP, HSRP, MSDP, OSPF, PIM-SM, PIM-SSM, RIP-2 |
| Subcategory | Network hubs and switches |
| Subtype | 40 Gigabit Ethernet |
| Type | Switch |
Miscellaneous
| Color Category | Gray |
|---|---|
| Compliant Standards | AS/NZS 60950-1, AS/NZS CISPR22:2004 Class A, CISPR 24, CNS 13438(95) Class A, CSA C22.2 No. 60950-1 Second Edition, EMC, EN 300386, EN 60950-1 Second Edition, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, RoHS 6/6, UL 60950-1 Second Edition, VCCI Class A |
| Height (Rack Units) | 2 |
| Included Accessories | Accessory kit, Rack mount kit |
| Rack Mounting Kit | Included |
Environmental Parameters
| Humidity Range Operating | 5 – 95% (non-condensing) |
|---|---|
| Max Operating Temperature | 104 °F |
| Max Storage Temperature | 158 °F |
| Min Operating Temperature | 32 °F |
| Min Storage Temperature | -40 °F |
| Brand | Cisco |
|---|---|
| Compatibility | PC |
| Manufacturer | CISCO DS HARDWARE DIRECT |
| Model | 92304QC |
| Packaged Quantity | 1 |
| Product Line | Cisco Nexus |
| Product Series | N9K |
Power Device
| Frequency Required | 50/60 Hz |
|---|---|
| Hot-Plug | Hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V |
| Power Provided | 650 Watt |
| Power Redundancy | Yes |
| Type | Internal power supply |
Software
| Type | Cisco NX-OS |
|---|
Dimensions & Weight
| Depth | 22.5 in |
|---|---|
| Height | 3.5 in |
| Weight | 33.02 lbs |
| Width | 17.5 in |
Capacity
| Type | ACL entries (egress) |
|---|---|
| Value | 2000 |
| Type | ACL entries (ingress) |
| Value | 4000 |
| Type | Equal-Cost Multipathing (ECMP) ways |
| Value | 64 |
| Type | HSRP groups |
| Value | 490 |
| Type | IGMP snooping entries |
| Value | 32000 |
| Type | Longest prefix match (LPM) entries (IPv4) |
| Value | 16000 |
| Type | MAC addresses |
| Value | 96000 |
| Type | Multiple Spanning Tree Protocol instances |
| Type | Rapid Per-VLAN Spanning Tree Plus instances |
| Value | 507 |
| Type | Virtual interfaces (VLANs) |
| Value | 4096 |
| Type | Virtual Routing and Forwarding (VRF) entries |
Performance
| Type | Bandwidth |
|---|---|
| Value | 6.08 Tbps |
Ports
| Qty | 56 |
|---|---|
| Type | 40 Gigabit QSFP+ (breakout compatible) |
Ports (2nd)
| Qty | 8 |
|---|---|
| Type | 100 Gigabit QSFP28 |
RAM
| Installed Size | 16 GB |
|---|
