Refurbished N7K-C7009-B2S2-R Technical Specifications

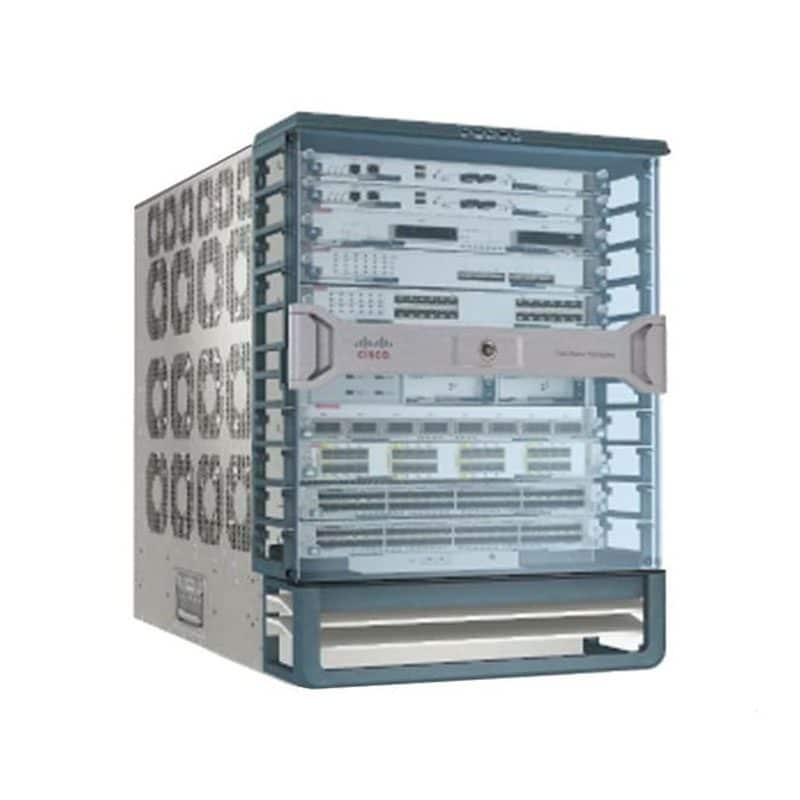

Cisco Nexus 7009 Bundle Switch
| Brand | Cisco |
|---|---|
| Product Line | Cisco Nexus |
| Model | :7009 |
| Kit | Bundle |
| Bundled with | :2 x Cisco Nexus 7000 Series Supervisor 2 Module, 5x Cisco Nexus 7000 Series Fabric-2 Module |
| Packaged Quantity | :1 |
Chassis
- Installed Devices / Modules Qty :7
- Supported Devices / Modules Qty :14
Processor
| Type | Xeon |
|---|---|
| Installed Qty | :2 |
| Manufacturer | Intel |
| Clock Speed | :2.13 GHZ |
RAM
| Installed Size | :24 GB |
|---|
Flash Memory
| Installed Size | :16 GB, 16 GB |
|---|
Networking
| Type | Switch |
|---|---|
| Subcategory | Network hubs and switches |
| Form Factor | Rack-mountable |
| Advanced Switching | Layer 3 |
| Manageable | Yes |
| Remote Management Protocol | CLI, SNMP 1, SNMP 2c, SNMP 3 |
| Features | Modular design |
Expansion Slots
| Expansion Slots | :14 (total) / 7 (free) x expansion slot, 4 (total) / 2 (free) x CompactFlash Card |
|---|
Interface Provided
| Interfaces | :2 x console – RJ-45 management, 2 x console RJ-45, 2 x USB Type B, 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 management, 4 x USB Type A |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Hot-Plug | Hot-plug |
| Installed Qty | :0 |
| Max Supported Qty | :2 |
Miscellaneous
| Height (Rack Units) | :14 |
|---|---|
| Mtbf | :318,572 Hours |
| Compliant Standards | BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, EMC, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN300-386, EN50082-1, EN55022 Class A, EN55024, ETSI, FCC CFR47 Part 15, FCC Class A certified, ICES-003 Class A, IEC 60950-1, NEBS level 3, RoHS 5/6, UL 60950-1, VCCI Class A ITE |
Dimensions & Weight
| Width | :17.3 inch |
|---|---|
| Depth | :24 inch |
| Height | :24.5 inch |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| Max Storage Temperature | :158 degree Fahrenheit |
| Humidity Range Operating | :5 – 90% (non-condensing) |
| Humidity Range Storage | :5 – 95% (non-condensing) |
