N5K-UCS5548UP-FA Technical Specifications

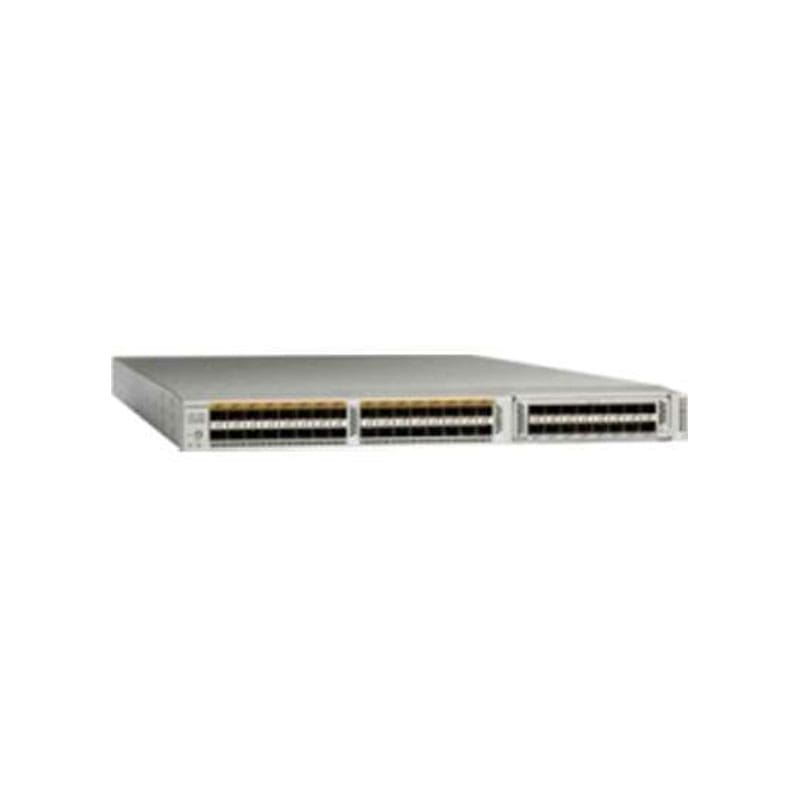

Cisco Nexus 5548UP Switch 32 ports Managed Rack-mountable
| Manufacturer Part Number | N5K-UCS5548UP-FA |
|---|---|
| Product Type | Layer 3 Switch |
| Manageable | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Number of Total | Expansion Slots; 33 |
| Product Family | Nexus 5000 |
| Stack Port | No |
| Media Type Supported | Twisted Pair |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | Yes |
| Expansion Slot Type | SFP+ |
| Form Factor | Rack-mountable |
| Power Source | Power Supply |
| Layer Supported | 3 |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS-6 |
| Compatible Rack Unit | 1U |
| Number of SFP+ Slots | 32 |
| Modular | No |
| Uplink Port | No |
| Shared SFP Slot | No |
| Height | 1.7″ |
| Width | 17.3″ |
| Depth | 29.5″ |
| Product Series | 5000 |
| Product Model | 5548UP |
| Product Line | Nexus |
| Token Ring Port | No |
| LRE Port | No |
| USB | No |
| Management Port | Yes |
| Bypass | No |
