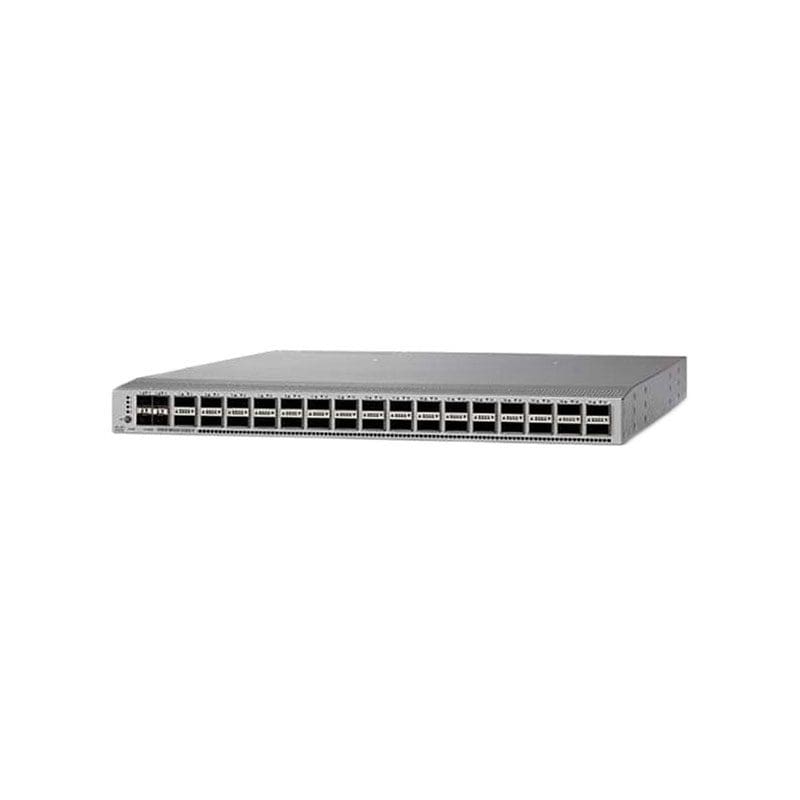

N3K-C3636C-R Technical Specifications
Cisco Nexus 3000 Series switch, 36p QSFP28 MACSEC
| Manufacturer | Cisco Systems, Inc |
|---|---|
| Brand Name | Cisco |
| Product Line | Cisco Nexus |
| Product Series | N3K |
| Product Model | 3636C-R |
| Product Name | Nexus 3636C-R Switch |
| Product Type | Layer 3 Switch |
Technical Information
Interfaces/Ports
| Uplink Port | Yes |
|---|---|
| Modular | Yes |
| Port/Expansion Slot Details | 36 x 100 Gigabit Ethernet Expansion Slot |
Media & Performance
| Media Type Supported | Optical Fiber |
|---|---|
| Ethernet Technology | 100 Gigabit Ethernet, 40 Gigabit Ethernet |
| Network Technology | 100GBase-X, 40GBase-X |
I/O Expansions
| Number of Total Expansion Slots | 36 QSFP28 |
|---|---|
| Expansion Slot Type | QSFP28 |
| Shared SFP Slot | No |
Network & Communication
| Layer Supported | 3 |
|---|
Management & Protocols
| Manageable | Yes |
|---|
Power Description
| Power Source | Power Supply |
|---|---|
| Redundant Power Supply Supported | Yes |
Physical Characteristics
| Compatible Rack Unit | 1U |
|---|---|
| Form Factor | Rack-mountable |
| Height | 1.7″ |
| Width | 17.3″ |
| Depth | 31.2″ |
| Weight (Approximate) | 35.63 lb |
