N3K-C3172TQ-6BD Technical Specifications

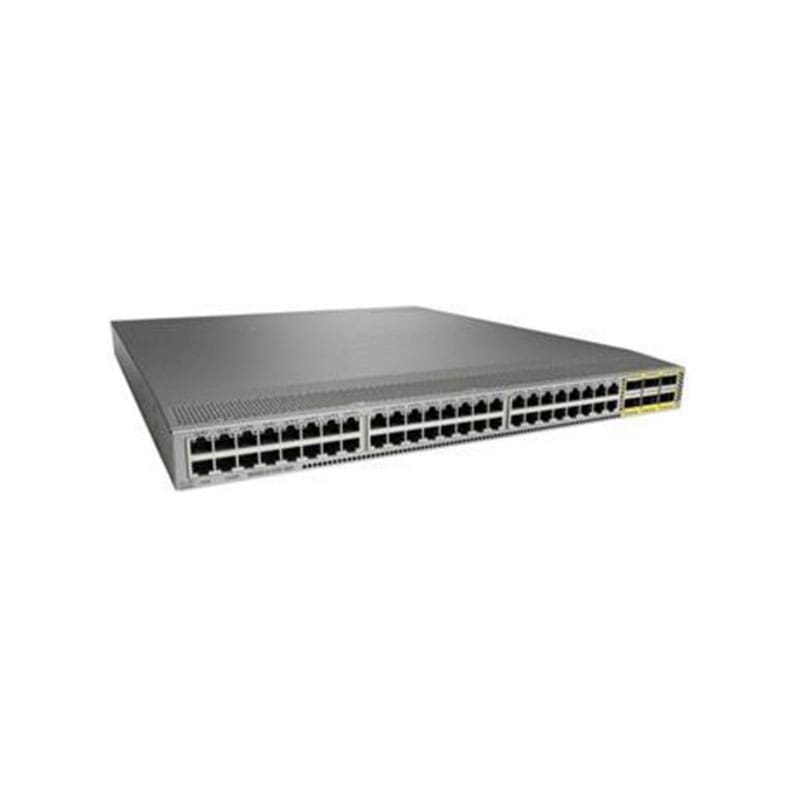

Cisco Nexus 3172TQ Bundle Switch 72 ports Managed Rack-mountable
| Manufacturer Part Number | N3K-C3172TQ-6BD |
|---|---|
| Product Type | Ethernet Switch |
| Manageable | Yes |
| Ethernet Technology | 10 Gigabit Ethernet, 40 Gigabit Ethernet |
| Number of Total Expansion Slots | 6 |
| Product Family | Nexus 3000 |
| Stack Port | No |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 48 |
| Redundant Power Supply Supported; | Yes |
| Expansion Slot Type | QSFP+ |
| Form Factor | Rack-mountable |
| Power Source | Power Supply |
| Layer Supported | 3 |
| Environmentally Friendly | Yes |
| Compatible Rack Unit | 1U |
| Modular | No |
| Uplink Port | No |
Port / Expansion Slot Details; 48 x 10 Gigabit Ethernet Network, 6 x 40 Gigabit Ethernet Expansion Slot
| Height | 1.7″ |
|---|---|
| Width | 19.7″ |
| Depth | 17.3″ |
| Product Series | 3000 |
| Product Model | 3172TQ |
| Network Technology | 10GBase-T, 40GBase-X |
| Product Line | Nexus |
