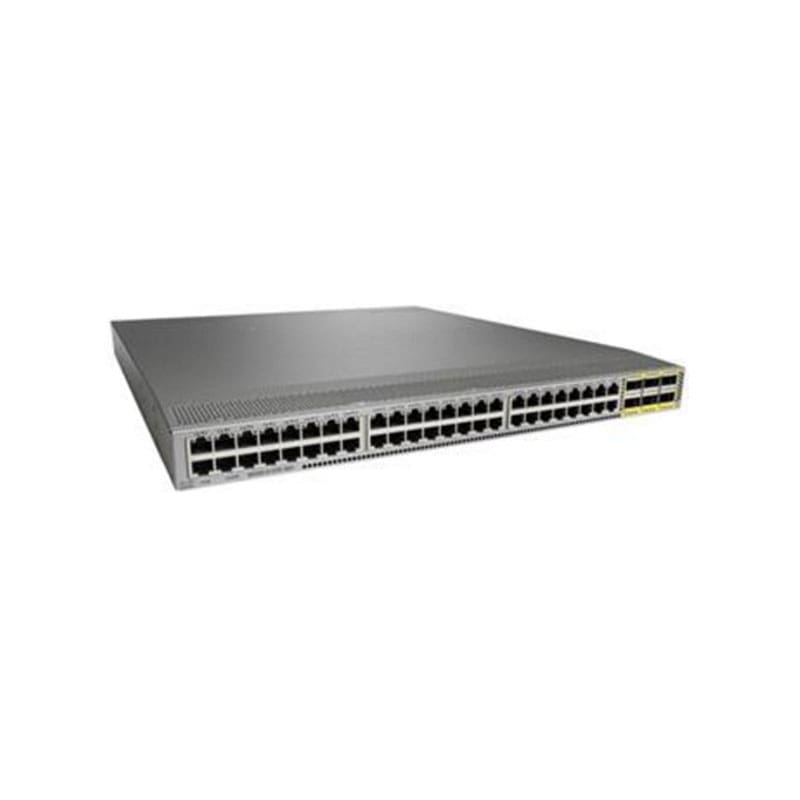

N3K-C3172TQ-4BD Cisco Nexus Switch 72 ports Rack-mountable

Brand:

N3K-C3172TQ-4BD Overview

The Cisco Nexus 3172TQ switch is a dense, high-performance Layer 2 and 3 10 and 40-Gbps switch that is a member of the Cisco Nexus 3100 switches. The Nexus 3100 switch is the Cisco Nexus 3000 series switches and offers improved port density, scalability, and features compared to the first-generation switches. It supports both forward and reverse airflow schemes with AC and DC power inputs. The Cisco Nexus 3172TQ is well suited for data centers that require a cost-effective, power-efficient line-rate Layer 2 and 3 top-of-rack (ToR) switch.

$12,919.00

Shipping calculated at checkout.
or
SKU: N3K-C3172TQ-4BD Categories: Brand:

N3K-C3172TQ-4BD Technical Specifications

Cisco Nexus 3172TQ Bundle Switch 72 ports Managed Rack-mountable

Brand Cisco
Manufacture Part Number N3K-C3172TQ-4BD
Product Line Cisco Nexus
Model 3172TQ
Manufacturer CISCO DS HARDWARE DIRECT

Network & Communication

Advanced Switching Layer 3
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9216 bytes
Manageable Yes
Ports 72
Product Type Switch
Subcategory Network hubs and switches
Switching Type 10 Gigabit Ethernet

Connectivity

Port Quantity 48
Port Type 10GBase-T
Ports Type (2nd) QSFP+

Power

Power Supplies Installed 0
Power Supplies Supported 2
Redundant Power Supply Optional

Software

Software Type Cisco NX-OS Layer 3 Base Services

Technical Information

Encryption AES
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 104 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 10 – 85% (non-condensing)
