N3K-C3172-FA-L3 Technical Specifications

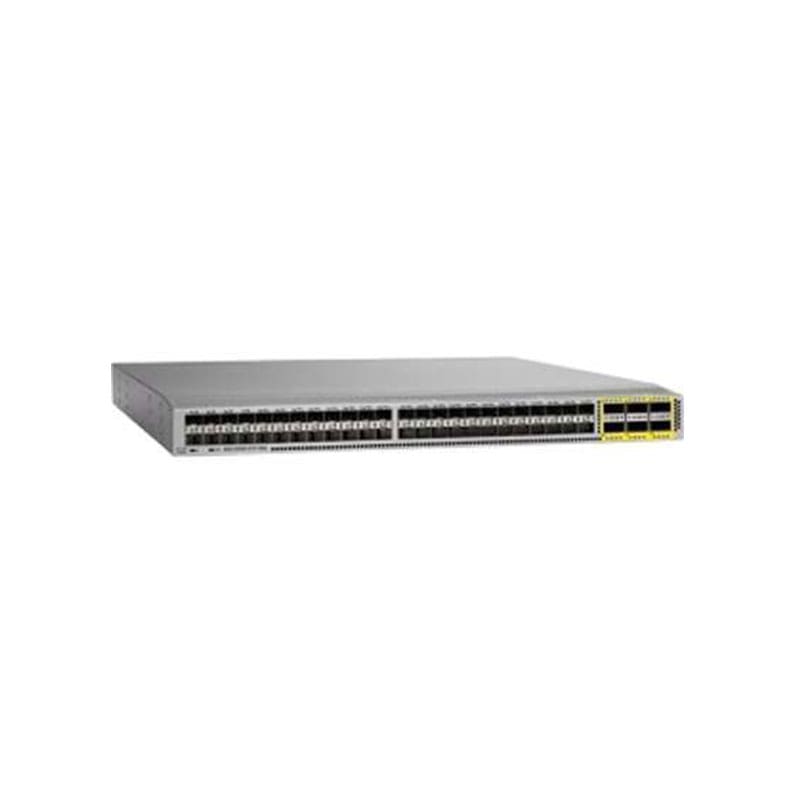

Cisco Nexus 3172PQ Switch 72 ports Managed Rack-mountable
| Manufacturer | Cisco Systems |
|---|---|
| Brand | Cisco |
| Product Line | Cisco Nexus |
| Model | 3172PQ |
| Packaged Quantity | 1 |
Performance
| Performance | Switching capacity: 1.4 Tbps |
|---|
Networking
| Type | Switch |
|---|---|
| Subcategory | Network hubs and switches |
| Subtype | 10 Gigabit Ethernet |
| Form Factor | Rack-mountable |
| Ports Qty | 72 |
| Advanced Switching | Layer 3 |
| Jumbo Frame Support | 9216 bytes |
| Manageable | Yes |
| Remote Management Protocol | CLI, RMON, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet |
Ports
| Qty | 48 |
|---|---|
| Type | SFP+ |
| Ports | (2nd) |
| Qty | 6 |
| Type | QSFP+ |
| Type | Internal power supply |
| Power Redundancy | Optional |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | 50/60 hertz |
| Features | Rear-to-front airflow |
