N3K-C3172-BA-L3 Technical Specifications

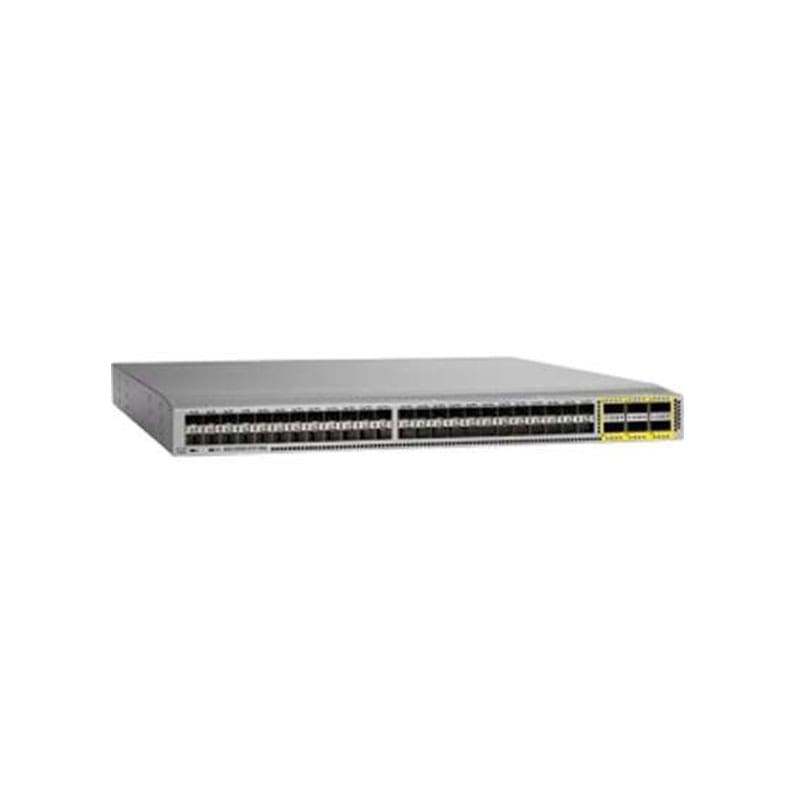

Cisco Nexus 3172PQ Switch 72 ports Managed Rack-mountable
| Brand | Cisco |
|---|---|
| Manufacture Part Number | N3K-C3172-BA-L3 |
| Product Line | Cisco Nexus |
| Model | 3172PQ |
| Manufacturer | CISCO DS HARDWARE DIRECT |
Network & Communication
| Advanced Switching | Layer 3 |
|---|---|
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9216 bytes |
| Manageable | Yes |
| Ports | 72 |
| Product Type | Switch |
| Subcategory | Network hubs and switches |
| Switching Type | 10 Gigabit Ethernet |
Connectivity
| Port Quantity | 48 |
|---|---|
| Port Type | SFP+ |
| Ports Type (2nd) | QSFP+ |
Power
| Features | Front-to-rear airflow |
|---|---|
| Frequency | 50/60 hertz |
| Power Supplies Installed | 1 |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Optional |
Software
| Software Type | Cisco NX-OS Layer 3 Enterprise Services |
|---|
Technical Information
| Encryption | AES |
|---|---|
| Humidity Range Storage | 5 – 95% (non-condensing) |
| Max Operating Temperature | 104 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
