N3K-C3132Q-V Technical Specifications

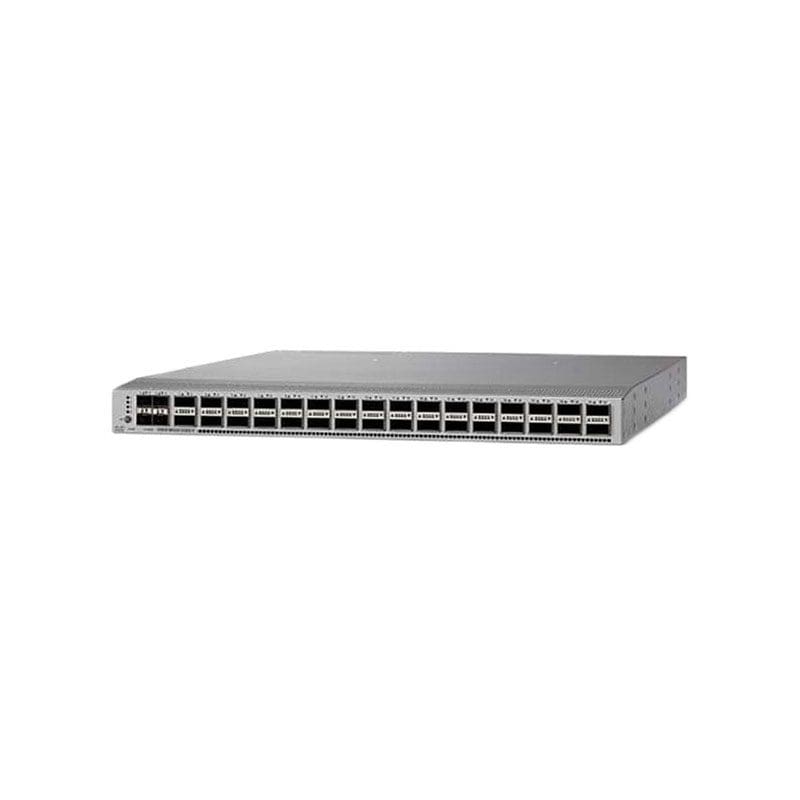

Cisco Nexus 3000 Series 32 QSFP+ port Switch
| Product Line | Cisco Nexus |
|---|---|
| Product Series | N3K |
| Device Type | Switch – 32 ports – L3 – Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 40 Gigabit Ethernet |
| Ports | 32 x QSFP+ |
| Performance Switching capacity | 2.56 Tbps |
| Forwarding performance | 1.4 Bpps |
| Capacity Virtual interfaces (VLANs) | 4096 |
| Multiple Spanning Tree Protocol instances | 64 |
| Rapid Spanning Tree Protocol instances | 512 |
| MAC addresses | 288000 |
| ACL entries (egress) | 1000 |
| ACL entries (ingress) | 16000 |
Jumbo Frame Support 9216 bytes
| Routing Protocol | RIP-2, BGP, EIGRP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-SSM, MSDP, policy-based routing (PBR) |
|---|---|
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
