N2K-C2232TF Technical Specifications

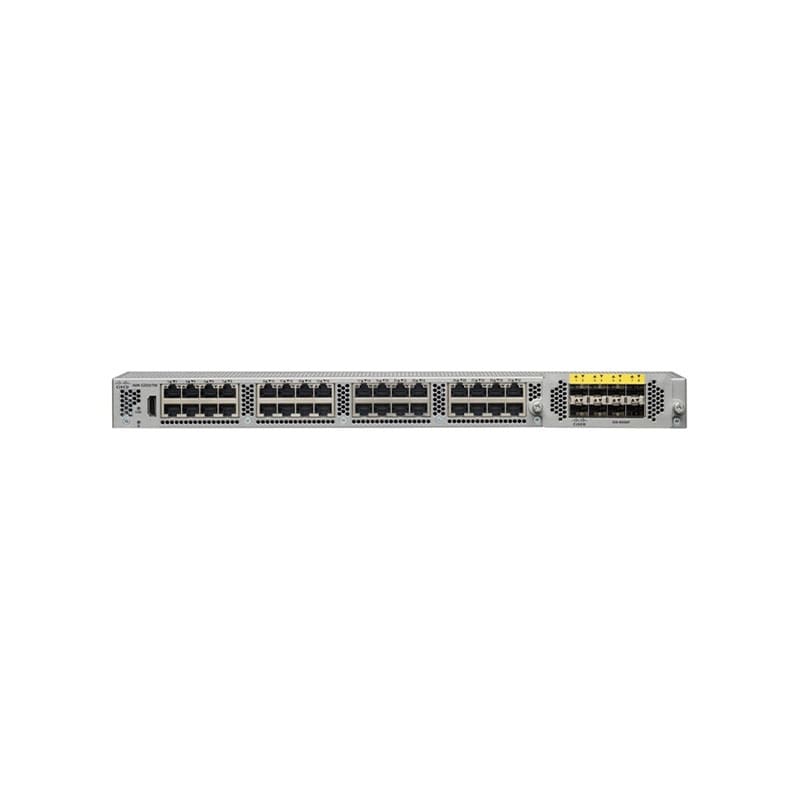

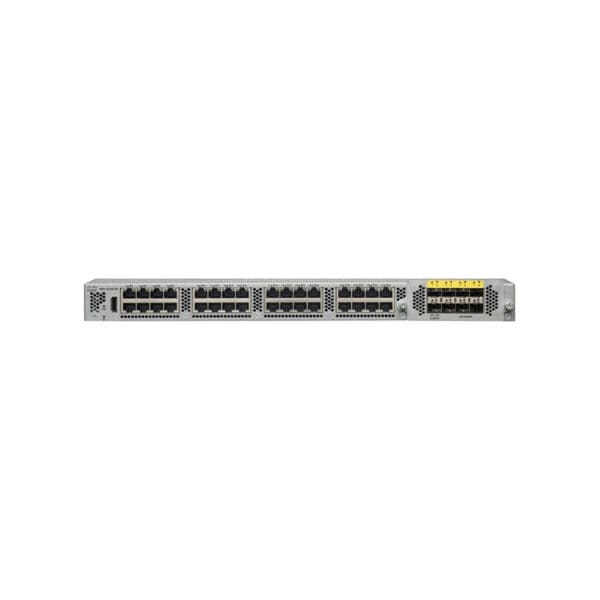

Cisco Nexus 2232TM Fabric Extender Expansion module Gigabit Ethernet
| Brand | Cisco |
|---|---|
| Product Line | Cisco Nexus |
| Model | 2232TM Fabric Extender |
| Manufacturer | CISCO DS HARDWARE DIRECT |
Network & Communication
| Cable Type | Ethernet 1000Base-T, Ethernet 10GBase-T |
|---|---|
| Connectivity Technology | Wired |
| Data Link Protocols | 10 Gigabit Ethernet, Gigabit Ethernet |
| Form Factor | Rack-mountable |
| Product Type | Expansion module |
Expansion Slots
| Expansion Slots | 8 (total) / 8 (free) x SFP+ |
|---|
Connectivity
| Interface Provided | 32 x 10Gb Ethernet – RJ-45 |
|---|---|
| Port Quantity | 32 |
| Network & Adapter Ports | Gigabit Ethernet / 10Gb Ethernet |
Technical Information
| Max Operating Temperature | 104 degree Fahrenheit |
|---|---|
| Min Operating Temperature | 32 degree Fahrenheit |
| Operating Humidity | 5 – 95% (non-condensing) |
Product Information
| Packaged Quantity | 1 |
|---|
Dimensions & Weight
| Height | 1.7 inch |
|---|---|
| Weight | 18.52 lbs |
| Width | 17.3 inch |
| Depth | 17.7 inch |
