MX960BASE3-AC Technical Specifications

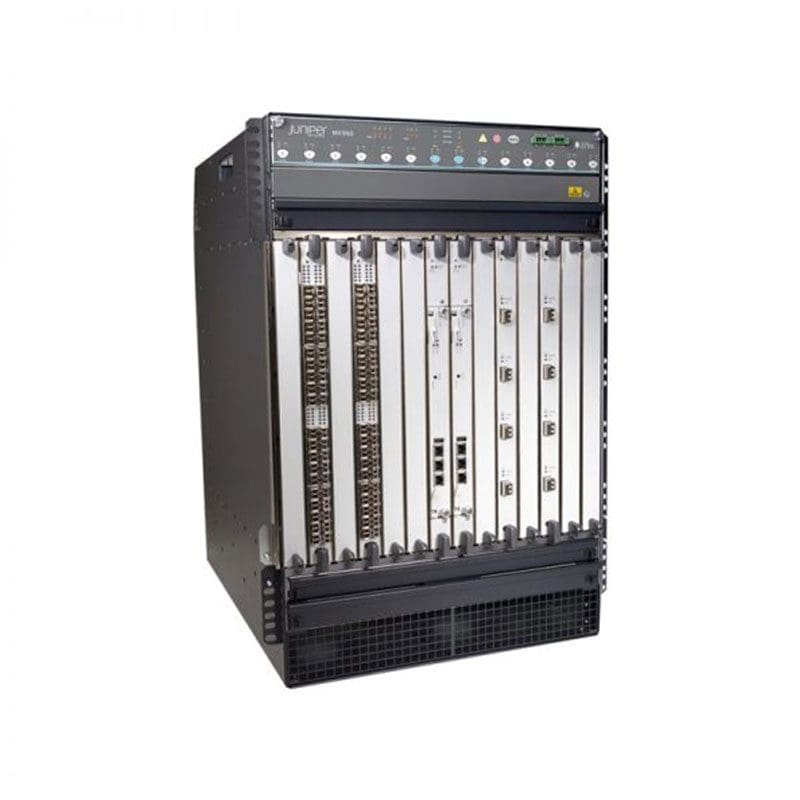

Juniper Networks MX-series MX960 modular expansion base rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks MX-series |
| Model | MX960 |
| Packaged Quantity | :1 |
Chassis
- Installed Devices / Modules Qty :0
- Supported Devices / Modules Qty :14
Performance
| Performance :Per-slot switching capacity | 480 Gbps, Switching capacity: 9.92 Tbps |
|---|
Networking
| Type | Modular expansion base |
|---|---|
| Form Factor | Rack-mountable |
| Modular | Modular |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet |
| Routing Protocol | GRE, MPLS, BGP |
| Remote Management Protocol | HTTP, SNMP 2, SNMP 3 |
| Key Features | VPN support |
Expansion Slots
| Expansion Slots | :14 (total) / 14 (free) x expansion slot |
|---|
OS Provided
| Type | JUNOS |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Power Redundancy | Optional |
| Nominal Voltage | AC 230 V |
| Power Consumption Operational | :7341 watt |
System Requirements
| OS Required | JUNOS |
|---|
Miscellaneous
| Color Category | Black |
|---|---|
| Height (Rack Units) | :16 |
