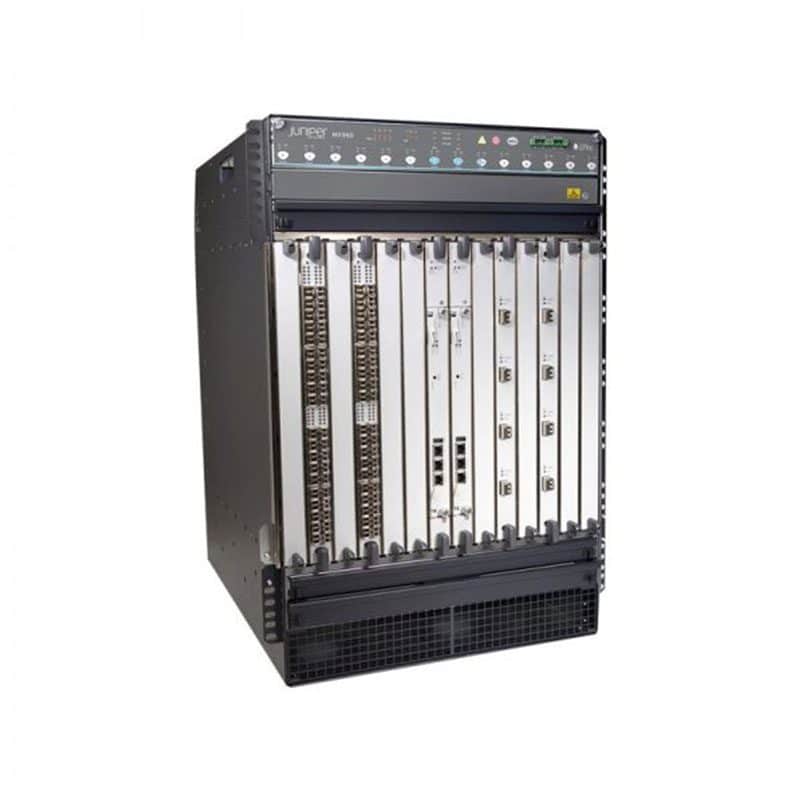

Refurbished MX960BASE-DC Technical Specifications
Juniper Networks MX-series MX960 modular expansion base desktop router
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks MX-series |
| Model | MX960 |
| Packaged Quantity | 1 |
Chassis
| Supported Devices / Modules Qty | 14 |
|---|
Networking
| Type | Modular expansion base |
|---|---|
| Form Factor | Desktop |
| Modular | Modular |
| Connectivity Technology | Wired |
| Data Link Protocol | Frame Relay, ATM |
| Remote Management Protocol | HTTP, SNMP 2, SNMP 3 |
| Status Indicators | Status |
| Key Features | VPN support |
| Features | Layer 2 switching, MPLS support, MPLS Fast Reroute (FRR), High Availability, Quality of Service (QoS), VPN support, Layer 3 switching, Manageable, Modular design |
Expansion Slots
| Expansion Slots | 14 expansion slot |
|---|
OS Provided
| Type | JUNOS |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Power Redundancy | Yes |
| Installed Qty | 2 |
| Max Supported Qty | 4 |
| Nominal Voltage | DC -48/-60 V |
Miscellaneous
| Height (Rack Units) | 16 |
|---|---|
| Compliant Standards | EN 61000-4-6, EN 61000-4-11, EN 61000-3-2, CSA C22.2 No. 60950-00, EMC, VCCI Class B ITE, FCC Part 15 B, EN 61000-4-3, NEBS level 3, BSMI, UL 60950, EN55022 Class B, EN 61000-4-2, EN 61000-4-4, EN 60950, AS/NZ 3548 Class B, IEC 825-1/EN 60825-1 class 1, EN 61000-4-5 |
Dimensions & Weight
| Width | 17.5 inch |
|---|---|
| Depth | 23.5 inch |
| Height | 27.8 inch |
| Weight | 334.66 lbs |
Environmental Parameters
| Min Operating Temperature | 32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | 104 degree Fahrenheit |
| Humidity Range Operating | 5 – 90% |
