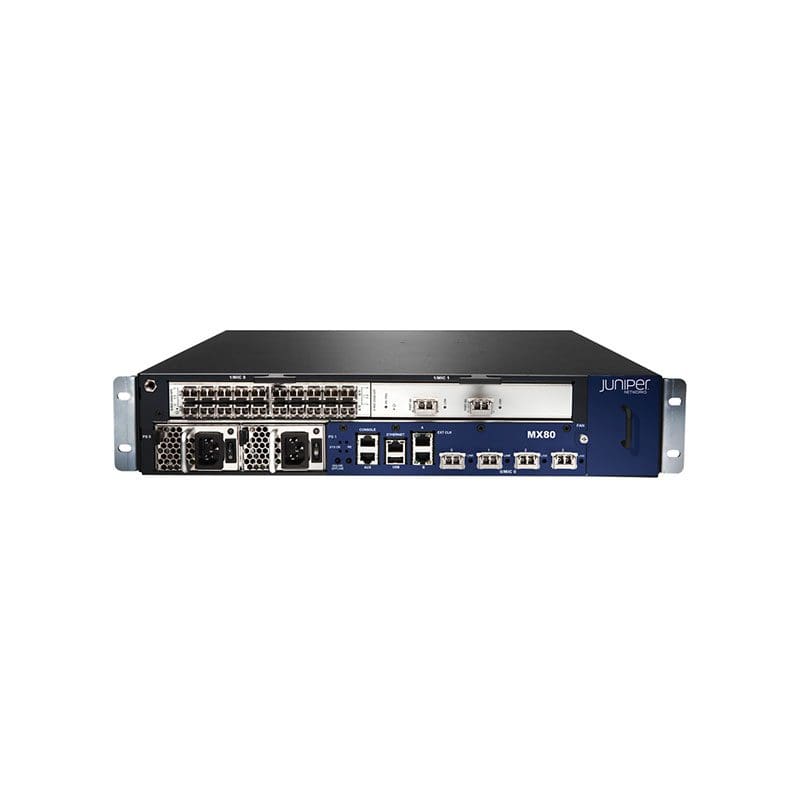

MX80BASE-P Juniper Networks MX-series MX80 Router Rack Mountable

Brand:

MX80BASE-P Overview

Juniper Networks MX80 3D Universal Edge router is the most compact member of the MX series product family. Only 2 RU high and equipped with front end accessible redundant power supplies and fans, this platform is perfectly suited for environments requiring full Ethernet capabilities, but facing space or power constraints. In addition to four embedded 10 Gigabit Ethernet ports, the MX80 leverages the technology used in the Modular Port Concentrators (MPCs), common across the MX series, and can accommodate multiple combinations of Modular Interface cards (MICs) for increased flexibility.

$77,499.00

Shipping calculated at checkout.
or
SKU: MX80BASE-P Categories: Brand:

MX80BASE-P Technical Specifications

Juniper Networks MX-series MX80 Router Rack Mountable

Manufacturer Netscreen
Brand Juniper, Juniper Networks
Product Line Juniper Networks MX-series
Model MX80
Packaged Quantity :1

Chassis

Airflow Direction Front to back airflow
  • Installed Devices / Modules Qty :0
  • Supported Devices / Modules Qty :2

RAM

Technology DDR2 SDRAM
Installed Size :2 GB

Flash Memory

Installed Size :4 GB, 4 GB

Performance

Performance :Switching capacity 80 Gbps

Networking

Type Router
Form Factor Rack-mountable
Modular Modular
Connectivity Technology Wired
Data Link Protocol TDM, PTP, 10 Gigabit Ethernet
Routing Protocol MPLS, BGP, GRE
Key Features Firewall, VPN support, USB port

Expansion Slots

Expansion Slots :2 (total) / 2 (free) x Modular Interface Card (MIC)

Interface Provided

Interfaces 4 x 10Gb Ethernet

Power Device

Type Internal power supply
