MX80-DC Technical Specifications

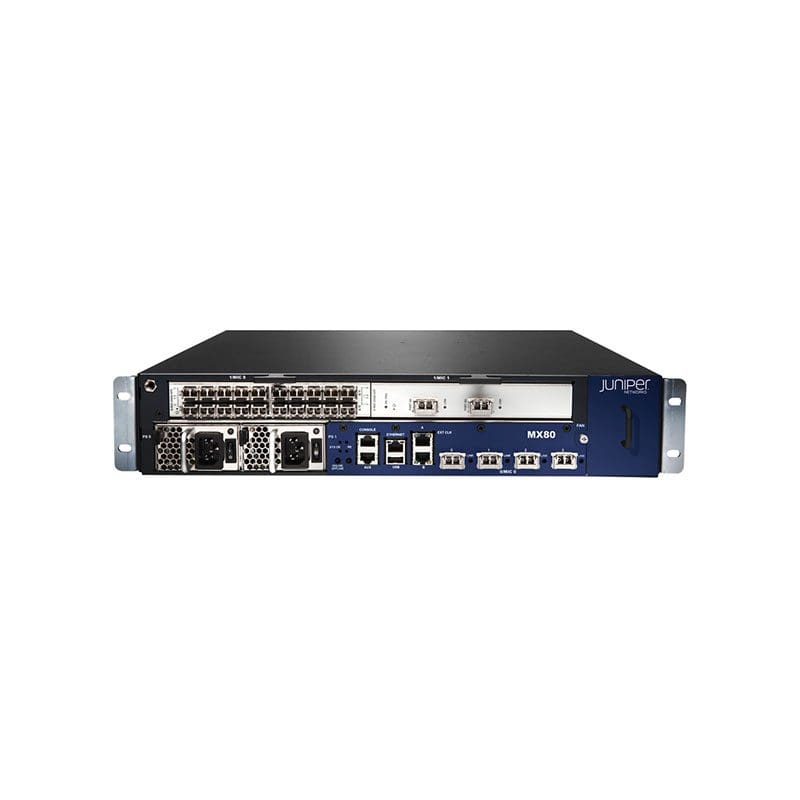

Juniper Networks MX-series MX80 Router Rack Mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks MX-series |
| Model | MX80 |
| Packaged Quantity | :1 |
Chassis
- Installed Devices / Modules Qty :2
- Supported Devices / Modules Qty :2
Networking
| Type | Router |
|---|---|
| Form Factor | Rack-mountable |
| Modular | Modular |
| Connectivity Technology | Wired |
| Routing Protocol | BGP, GRE |
| Remote Management Protocol | HTTP, SNMP 3, SNMP 2 |
| Key Features | VPN support |
| Features | Quality of Service (QoS), High Availability, Manageable, VPN support, MPLS support |
Power Device
| Type | Internal power supply |
|---|---|
| Installed Qty | :1 |
| Max Supported Qty | :2 |
| Power Provided | :500 watt |
| Nominal Voltage | DC -40 -72 V |
| Power Consumption Operational | :320 watt |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :23.5 inch |
| Height | :3.5 inch |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
