MX80-AC Technical Specifications

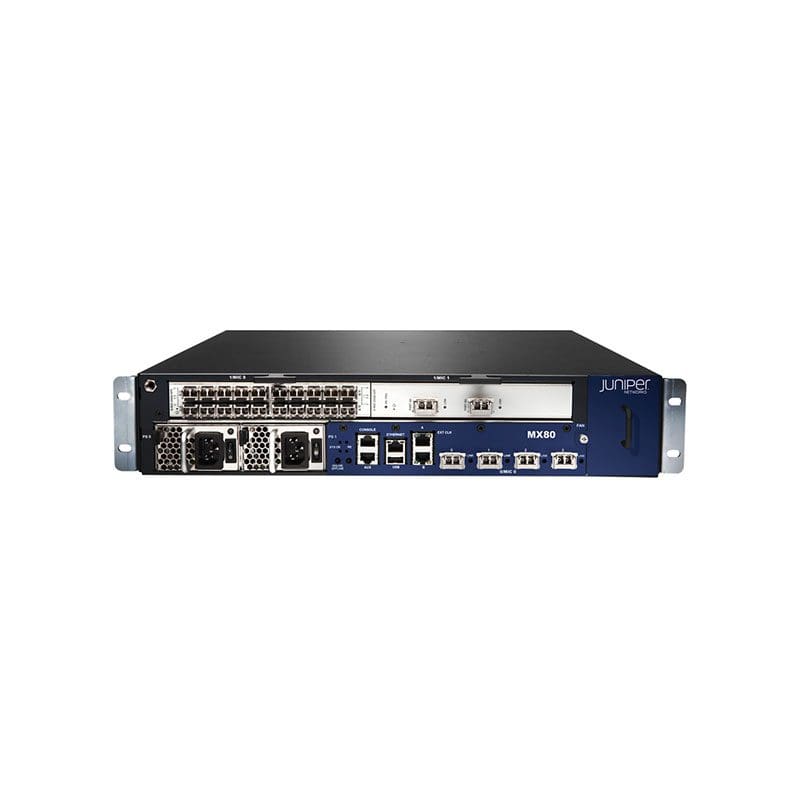

Juniper Networks MX-series MX80 router rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks MX-series |
| Model | MX80 |
| Packaged Quantity | :1 |
Chassis
- Installed Devices / Modules Qty :2
- Supported Devices / Modules Qty :2
Modem
| Type | None |
|---|
Performance
| Performance :Switching capacity | 80 Gbps |
|---|
Networking
| Type | Router |
|---|---|
| Form Factor | Rack-mountable |
| Modular | Modular |
| Connectivity Technology | Wired |
| Routing Protocol | GRE, BGP |
| Remote Management Protocol | SNMP 2, SNMP 3, HTTP |
| Key Features | VPN support, USB port |
| Features | VPN support, MPLS support, Quality of Service (QoS), Manageable |
Expansion Slots
Power Device
| Type | Internal power supply |
|---|---|
| Power Redundancy | Yes |
| Installed Qty | :1 |
| Max Supported Qty | :2 |
| Nominal Voltage | AC 120/230 V |
| Power Consumption Operational | :376 watt |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :23.5 inch |
| Height | :3.5 inch |
| Weight | :30.2 lbs |
