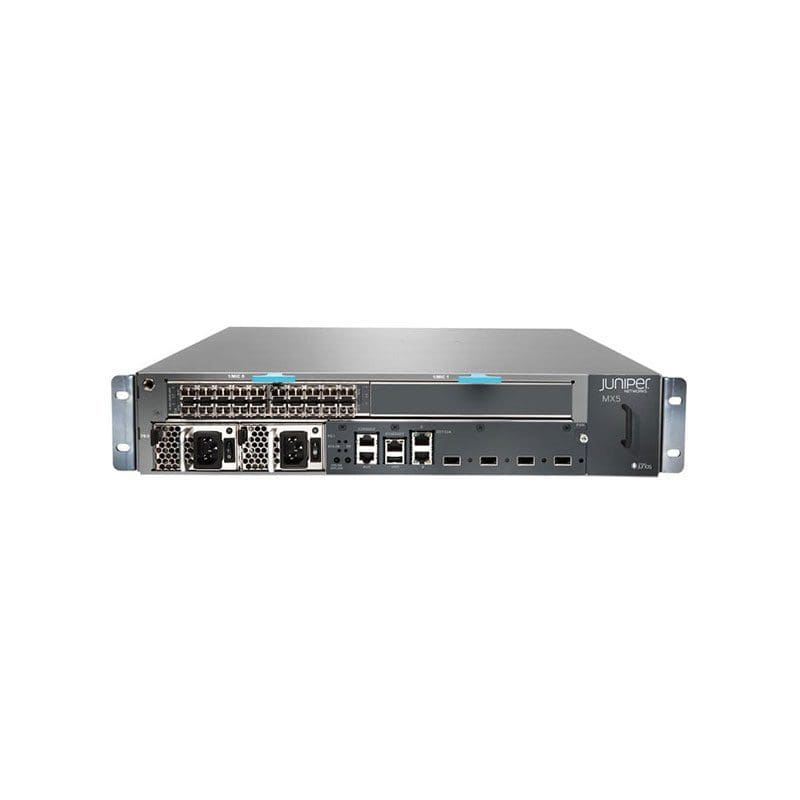

Refurbished MX5-T-DC Juniper Networks MX-series MX5 router
Refurbished MX5-T-DC Overview
The MX5 3D universal edge router is a versatile platform for small scale environments with space and power constraints, for both enterprise and service provider networks needing full MX series features and capabilities in a compact form factor.
$4,800.00
Shipping calculated at checkout.
Refurbished MX5-T-DC Technical Specifications
Juniper Networks MX-series MX5 router rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks MX-series |
| Model | MX5 |
| Packaged Quantity | :1 |
Chassis
- Installed Devices / Modules Qty :0
- Supported Devices / Modules Qty :1
Modem
| Type | None |
|---|
Performance
| Performance :Switching capacity | 20 Gbps |
|---|
Networking
| Type | Router |
|---|---|
| Form Factor | Rack-mountable |
| Modular | Modular |
| Connectivity Technology | Wired |
| Routing Protocol | GRE |
| Remote Management Protocol | SNMP 3, HTTP, SNMP 2 |
| Key Features | VPN support |
| Features | Modular design, VPN support, Manageable, Quality of Service (QoS), MPLS support |
Expansion Slots
| Expansion Slots | :1 (total) / 1 (free) x Modular Interface Card (MIC), 4 (total) / 4 (free) x XFP |
|---|
Interface Provided
| Interfaces :1 x Ethernet – RJ-45, Synchronization | 2 x RJ-45, 1 x auxiliary – RJ-45, 1 x USB – 4 pin USB Type A, 1 x console – RJ-45 |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Max Supported Qty | :2 |
| Nominal Voltage | DC -40 -72 V |
Miscellaneous
| Height (Rack Units) | :2 |
|---|---|
| Compliant Standards | FCC Part 15 A, EN 61000-4-3, EN 61000-4-6, EN55022 Class A, EN 60825-1, EN 61000-4-5, VCCI Class A ITE, EN 61000-4-11, EN 60950, UL 1950 Third Edition, AS/NZS 3548 Class A, CSA C22.2 No. 60950-00, NEBS, EN 61000-4-4, EN 61000-3-3, EN 61000-3-2, EN 61000-4-2 |
Dimensions & Weight
| Width | :6.9 inch |
|---|---|
| Depth | :23.5 inch |
| Height | :3.5 inch |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :5 – 90% (non-condensing) |
