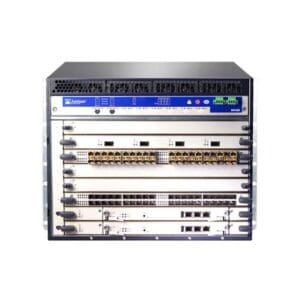

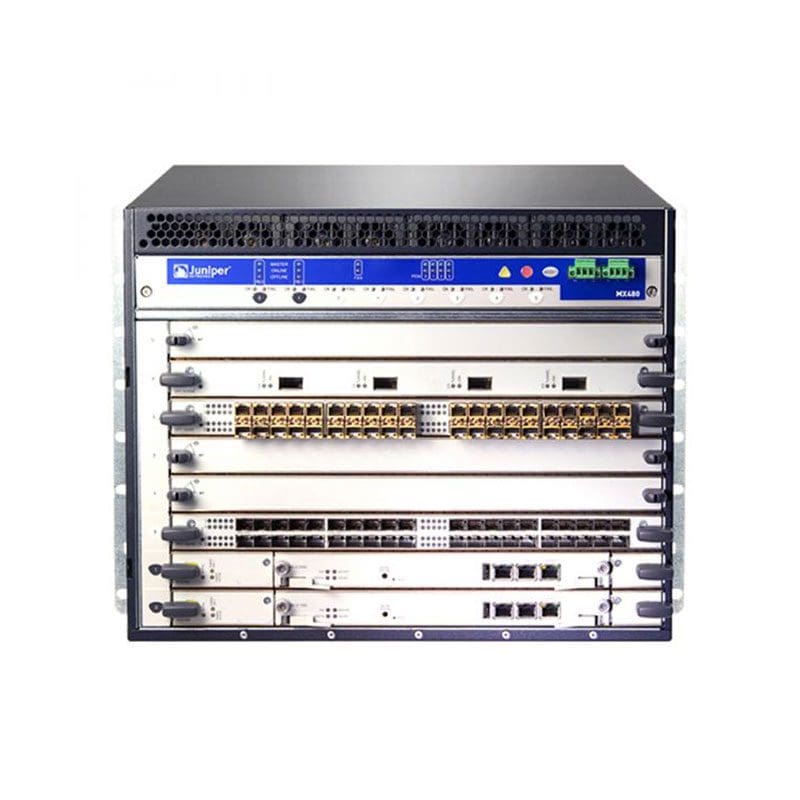

MX480BASE3-AC Juniper MX-series MX480 Router Rack Mountable
MX480BASE3-AC Overview
The MX480 Ethernet Services Router provides a dense, highly redundant platform primarily targeted for dense dedicated access aggregation and provider edge services in medium-size and large Points of Presence (POPs).
$58,799.00
Shipping calculated at checkout.
MX480BASE3-AC Technical Specifications
Juniper Networks MX-series MX480 Router Rack Mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks MX-series |
| Model | MX480 |
| Packaged Quantity | :1 |
Chassis
- Installed Devices / Modules Qty :0
- Supported Devices / Modules Qty :8
Performance
| Performance :Switching capacity | 2.72 Tbps, Per-slot switching capacity: 240 Gbps |
|---|
Capacity
| Capacity :Virtual interfaces (VLANs) | 128000 |
|---|
Networking
| Type | Router |
|---|---|
| Form Factor | Rack-mountable |
| Modular | Modular |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Frame Relay, TDM, ATM |
| Routing Protocol | GRE, MPLS, BGP |
| MAC Address Table Size | :1M entries |
Expansion Slots
| Expansion Slots | :8 (total) / 8 (free) x expansion slot |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Power Redundancy | Optional |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | :50/60 hertz |
System Requirements
| OS Required | JUNOS |
|---|
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :23.8 inch |
| Height | :14 inch |
