Refurbished MX480-PREMIUM3-DC Juniper Networks MX-series
Refurbished MX480-PREMIUM3-DC Overview
The MX480 Ethernet Services Router provides a dense, highly redundant platform primarily targeted for dense dedicated access aggregation and provider edge services in medium-size and large Points of Presence (POPs).
$30,500.00
Shipping calculated at checkout.
Refurbished MX480-PREMIUM3-DC Technical Specifications

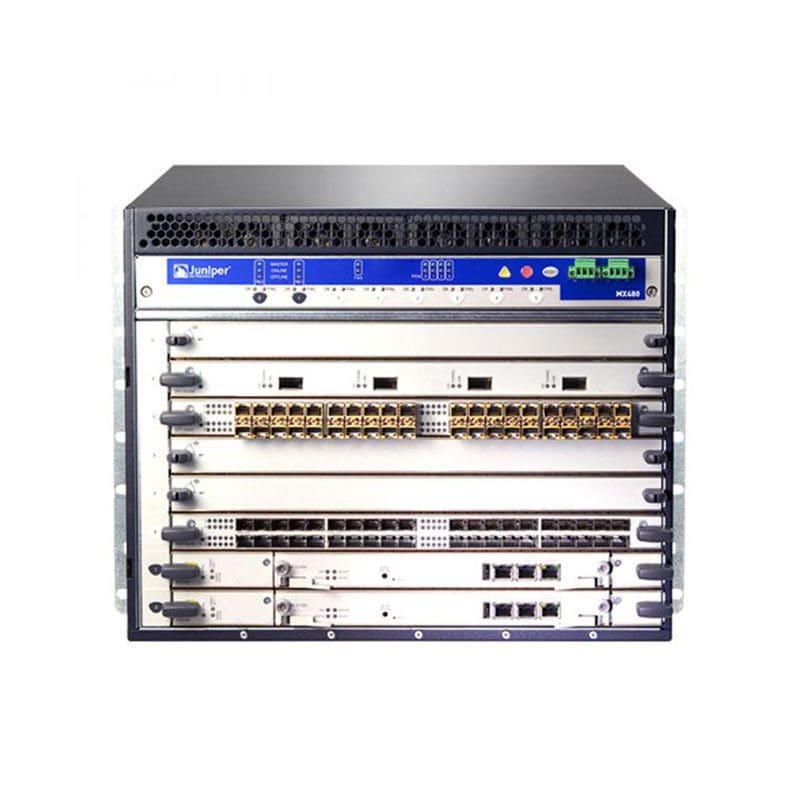

Juniper Networks MX-series MX480 router rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks MX-series |
| Model | MX480 |
| Packaged Quantity | :1 |
Chassis
| Airflow Direction | Side to side airflow |
|---|---|
| Built-in Devices | Enhanced midplane |
- Installed Devices / Modules Qty :2
- Supported Devices / Modules Qty :8
Performance
| Performance :Switching capacity | 9 Tbps, Per-slot switching capacity: 1.5 Tbps |
|---|
Networking
| Type | Router |
|---|---|
| Form Factor | Rack-mountable |
| Modular | Modular |
| Connectivity Technology | Wired |
| Data Link Protocol | :400 Gigabit Ethernet, 100 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet, 40 Gigabit Ethernet |
| Routing Protocol | BGP, MPLS, GRE |
| Network / Transport Protocol | IPSec |
| Features | Layer 3 switching, Carrier Grade NAT (CGN/CGNAT), Side to side airflow, Layer 2 switching, DWDM, Network Function Virtualization (NFV), Modular design, MPLS LSR support, DDoS Protection, Network Virtualization using Generic Routing Encapsulation (NVGRE), Distributed DoS (DDoS), MACsec support, Virtual Extensible LAN (VXLAN), Generic Routing Encapsulation (GRE), Firewall protection, Hierarchical Quality of Service (HQoS), Virtual Private LAN Service (VPLS), Precision Time Protocol (PTP) |
| Compliant Standards | IEEE 802.1BR |
Expansion Slots
| Expansion Slots | :2 Switch Control Board (SCBE), 2 Services and Routing Engine (SRE), 8 (total) / 4 (free) x expansion slot |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Power Redundancy | Yes |
Miscellaneous
| Color Category | Black |
|---|---|
| Height (Rack Units) | :8 |
| Compliant Standards | GR-1089-CORE, EMC, GR-63-CORE |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :23.8 inch |
| Height | :14 inch |
| Weight | :179.9 lbs |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :114.8 degree Fahrenheit |
| Humidity Range Operating | :5 – 90% |
