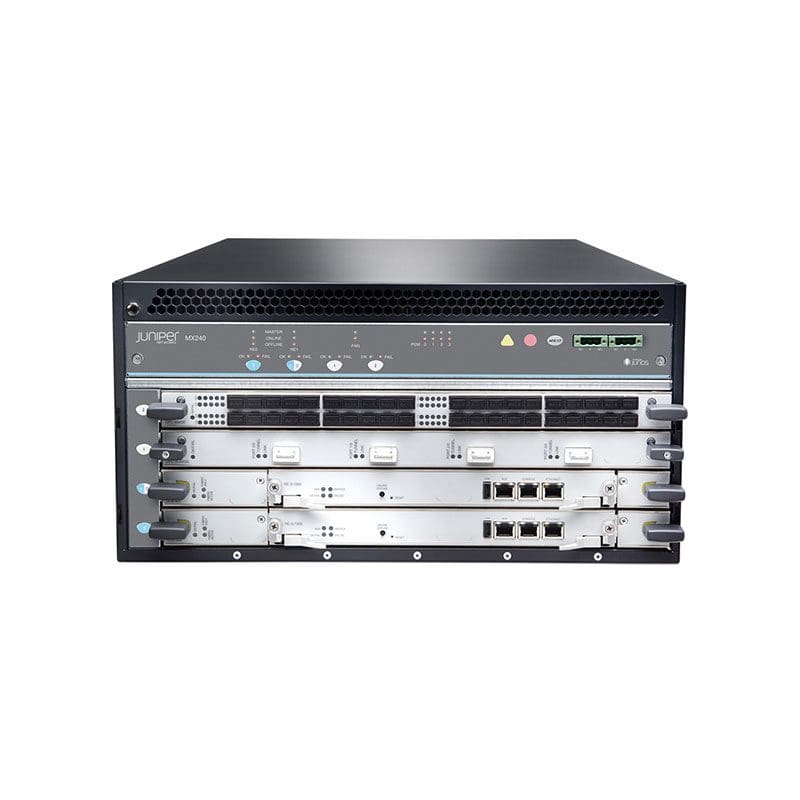

MX240BASE3-ACL Juniper Networks MX-series MX240 Router
MX240BASE3-ACL Overview
The MX240 Ethernet Services Router design delivers increased port density over traditional carrier Ethernet platforms as well as performance of 200+ Gbps throughput, scalability and reliability in a space-efficient package. The MX240 offers fully redundant hardware that includes a redundant Switch Control Board (SCB) and Routing Engines (REs) to increase system availability.
$55,599.00
Shipping calculated at checkout.
MX240BASE3-ACL Technical Specifications
Juniper Networks MX-series MX240 Router Rack Mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks MX-series |
| Model | MX240 |
| Packaged Quantity | :1 |
Chassis
- Installed Devices / Modules Qty :0
- Supported Devices / Modules Qty :4
Performance
| Performance :Per-slot switching capacity | 480 Gbps, Switching capacity: 1.92 Tbps |
|---|
Networking
| Type | Router |
|---|---|
| Form Factor | Rack-mountable |
| Modular | Modular |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, PPP |
| Routing Protocol | BGP, GRE, MPLS |
Expansion Slots
| Expansion Slots | :4 (total) / 4 (free) x expansion slot |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Power Redundancy | Optional |
| Max Supported Qty | :4 |
| Nominal Voltage | AC 110 V |
| Frequency Required | :50/60 hertz |
System Requirements
| OS Required | JUNOS |
|---|
Miscellaneous
| Color Category | Black |
|---|---|
| Authentication Method | RADIUS |
