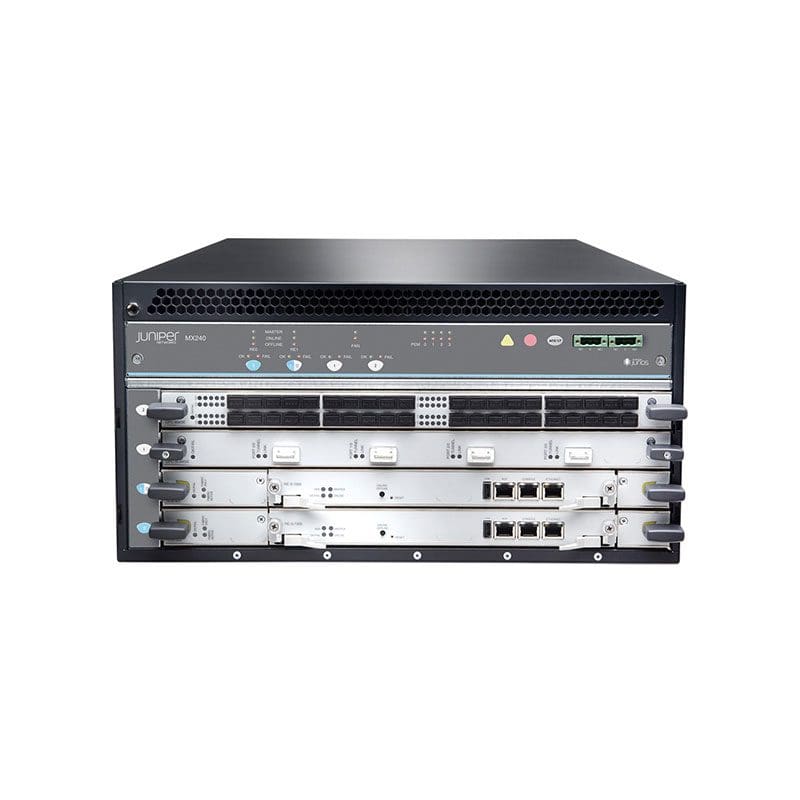

Refurbished MX240-PREMIUM3-ACL Juniper MX-series MX240 router
Refurbished MX240-PREMIUM3-ACL Overview
The MX240 Ethernet Services Router design delivers increased port density over traditional carrier Ethernet platforms as well as performance of 200+ Gbps throughput, scalability and reliability in a space-efficient package. The MX240 offers fully redundant hardware that includes a redundant Switch Control Board (SCB) and Routing Engines (REs) to increase system availability.
$31,170.00
Shipping calculated at checkout.
Refurbished MX240-PREMIUM3-ACL Technical Specifications
Juniper Networks MX-series MX240 router rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks MX-series |
| Model | MX240 |
| Packaged Quantity | :1 |
Chassis
| Airflow Direction | Side to side airflow |
|---|---|
| Supported Devices / Modules Qty :4 | |
Performance
| Performance :Switching capacity | 3 Tbps, Per-slot switching capacity: 1.5 Tbps |
|---|
Networking
| Type | Router |
|---|---|
| Form Factor | Rack-mountable |
| Modular | Modular |
| Connectivity Technology | Wired |
| Data Link Protocol | :40 Gigabit Ethernet, 400 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet, 100 Gigabit Ethernet |
| Routing Protocol | GRE, BGP, MPLS |
| Features | DDoS Protection, Precision Time Protocol (PTP), MPLS LSR support, Virtual Private LAN Service (VPLS), Hierarchical Quality of Service (HQoS), Side to side airflow, DWDM, Firewall protection, Generic Routing Encapsulation (GRE), MACsec support, Network Virtualization using Generic Routing Encapsulation (NVGRE), Layer 2 switching, Network Function Virtualization (NFV), Virtual Extensible LAN (VXLAN), Carrier Grade NAT (CGN/CGNAT), Layer 3 switching, Modular design, Distributed DoS (DDoS) |
| Compliant Standards | IEEE 802.1BR |
Expansion Slots
| Expansion Slots | :4 (total) / 2 (free) x expansion slot |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Power Redundancy | Yes |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | :50/60 hertz |
Miscellaneous
| Color Category | Black |
|---|---|
| Height (Rack Units) | :5 |
| Compliant Standards | GR-1089-CORE, EMC, GR-63-CORE |
Dimensions & Weight
| Width | :17.4 inch |
|---|---|
| Depth | :24.5 inch |
| Height | :8.7 inch |
| Weight | :130.07 lbs |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :114.8 degree Fahrenheit |
| Humidity Range Operating | :5 – 90% |
