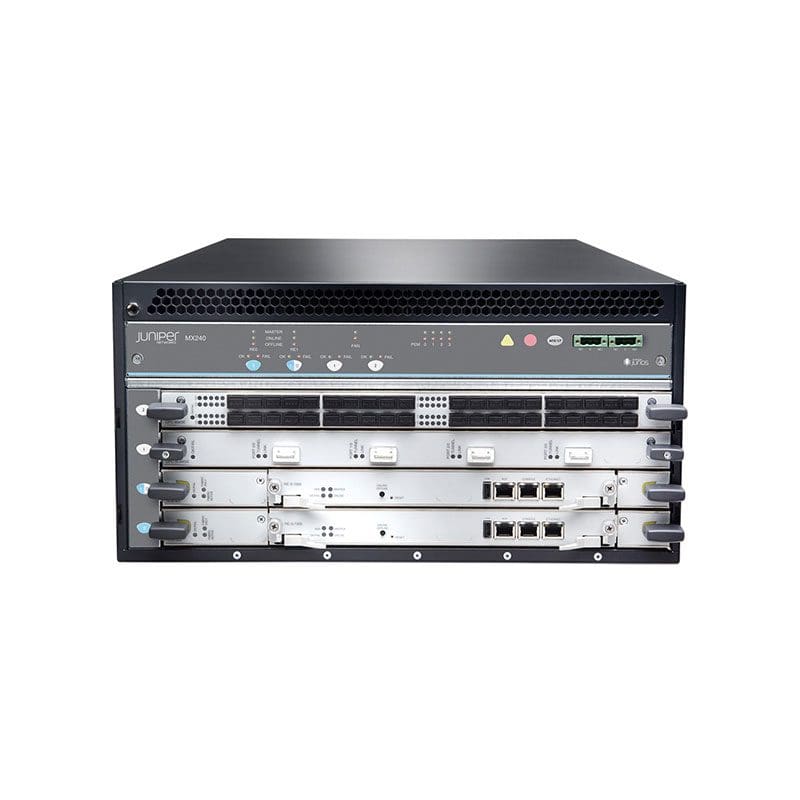

Refurbished MX240-PREMIUM3-ACH Juniper Networks MX-series
Refurbished MX240-PREMIUM3-ACH Overview
The MX240 Ethernet Services Router design delivers increased port density over traditional carrier Ethernet platforms as well as performance of 200+ Gbps throughput, scalability and reliability in a space-efficient package. The MX240 offers fully redundant hardware that includes a redundant Switch Control Board (SCB) and Routing Engines (REs) to increase system availability.
$30,500.00
Shipping calculated at checkout.
Refurbished MX240-PREMIUM3-ACH Technical Specifications
Juniper Networks MX-series MX240 router rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks MX-series |
| Model | MX240 |
| Packaged Quantity | :1 |
Chassis
| Airflow Direction | Side to side airflow |
|---|---|
| Supported Devices / Modules Qty :4 | |
Performance
| Performance :Switching capacity | 3 Tbps, Per-slot switching capacity: 1.5 Tbps |
|---|
Networking
| Type | Router |
|---|---|
| Form Factor | Rack-mountable |
| Modular | Modular |
| Connectivity Technology | Wired |
| Data Link Protocol | :10 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet |
| Routing Protocol | MPLS, BGP, GRE |
| Status Indicators | Status |
| Features | Carrier Grade NAT (CGN/CGNAT), DWDM, Generic Routing Encapsulation (GRE), Network Virtualization using Generic Routing Encapsulation (NVGRE), DDoS Protection, MACsec support, Modular design, Virtual Private LAN Service (VPLS), Network Function Virtualization (NFV), Virtual Extensible LAN (VXLAN), Firewall protection, Layer 2 switching, MPLS LSR support, Hierarchical Quality of Service (HQoS), Precision Time Protocol (PTP), Distributed DoS (DDoS), Layer 3 switching, Side to side airflow |
| Compliant Standards | IEEE 802.1BR |
Expansion Slots
| Expansion Slots | :4 (total) / 2 (free) x expansion slot |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Power Redundancy | Optional |
| Nominal Voltage | AC 220 V |
| Frequency Required | :50/60 hertz |
Miscellaneous
| Color Category | Black |
|---|---|
| Height (Rack Units) | :5 |
| Compliant Standards | GR-63-CORE, EMC, GR-1089-CORE |
Dimensions & Weight
| Width | :17.4 inch |
|---|---|
| Depth | :24.5 inch |
| Height | :8.7 inch |
| Weight | :130.07 lbs |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :114.8 degree Fahrenheit |
| Humidity Range Operating | :5 – 90% |
