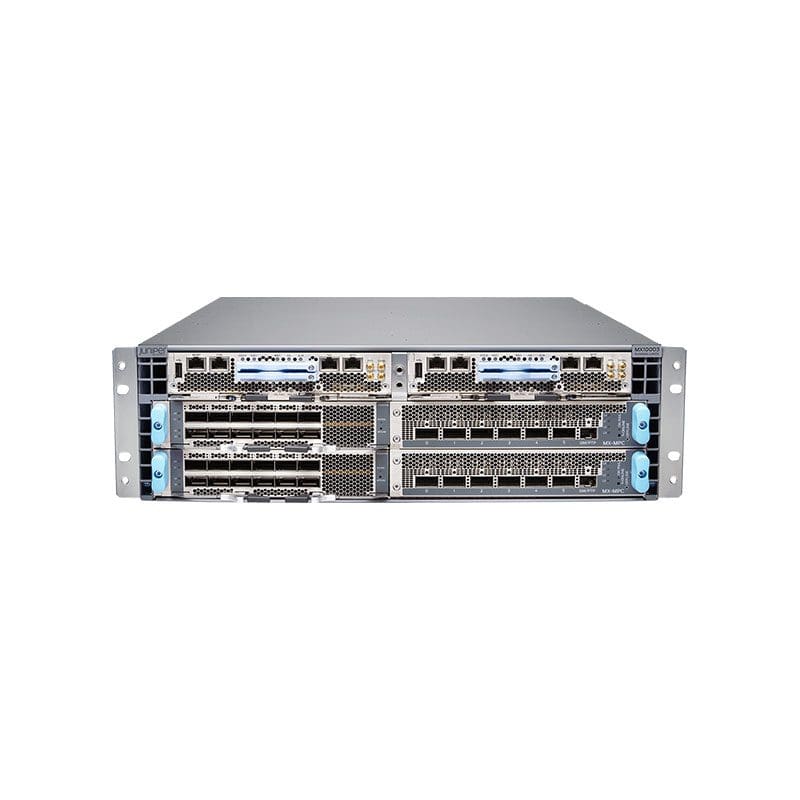

MX10003-BASE Juniper JNP10003 / MX10003 Base 2-slot Chassis
MX10003-BASE Overview
The Juniper Networks Base 2-slot chassis unit includes 1 routing engine, 4 power supplies, and 4 fan trays. The Juniper Networks MX10003 5G Universal Routing Platform is a cloud-era platform that cost-effectively addresses the evolutionary edge and metro Ethernet needs of service providers, mobile, web-scale operators, and multiple-service operators (MSOs) with ultra-high-density 10GbE, 40GbE, and 100GbE connectivity in a space- and power-optimized package.
$48,999.00
Shipping calculated at checkout.
MX10003-BASE Technical Specifications
Juniper JNP10003 / MX10003 Base 2-slot Chassis
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks 5G Universal Routing Platform |
| Model | MX10003 |
| Bundled with | Juniper Routing Engine |
| Packaged Quantity | :1 |
Chassis
| Airflow Direction | Front to back airflow |
|---|
Performance
| Performance :Throughput | 2.4 Tbps |
|---|
Networking
| Type | Router |
|---|---|
| Form Factor | Rack-mountable |
| Modular | Modular |
| Connectivity Technology | Wired |
Expansion Slots
| Expansion Slots | :2 (total) / 1 (free) x expansion slot |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Installed Qty | :4 |
| Max Supported Qty | :6 |
Miscellaneous
| Included Accessories | EMI door, Air filter |
|---|---|
| Height (Rack Units) | :3 |
