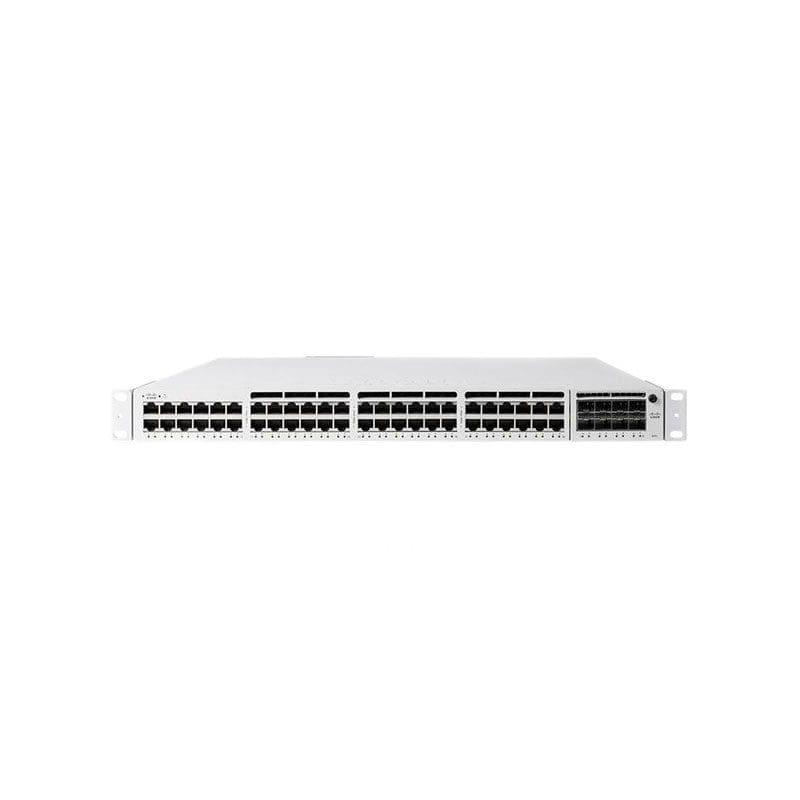

MS390-48U-HW Technical Specifications
Meraki 48 Port Gbe UPoE Switch
| Product Line | Meraki |
|---|---|
| Product Service | MS390 |
Interfaces/Ports
| Total Number of Network Ports | 48 |
|---|---|
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet UPoE, 2 x Stack, 1 x Expansion Slot |
Media & Performance
| Media Type Supported | Twisted Pair, Optical Fiber |
|---|---|
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
I/O Expansions
| Number of Total Expansion Slots | 1 |
|---|---|
| Expansion Slot Type | I/O Module |
Network & Communication
| Layer Supported | 3 |
|---|
Management & Protocols
| Manageable | Yes |
|---|
Power Description
| Power Source | Power Supply |
|---|---|
| Redundant Power Supply Supported | Yes |
Physical Characteristics
| Compatible Rack Unit | 1U |
|---|---|
| Form Factor | Rack-mountable |
Cable Guide
| Environmentally Friendly | Yes |
|---|---|
| Environmental Certification | RoHS |
