MS250-24P-HW Technical Specifications

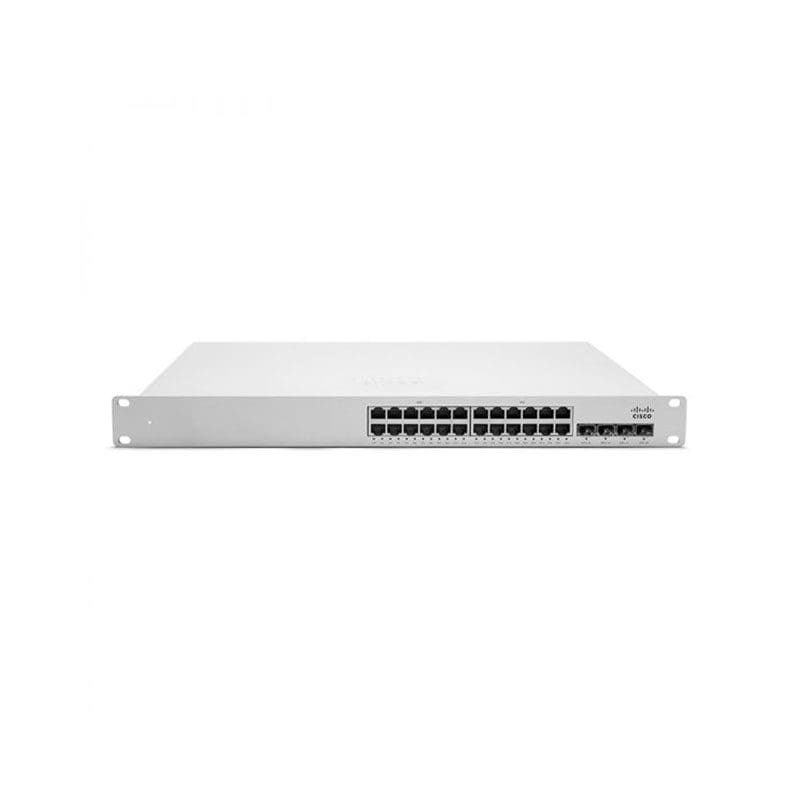

Cisco Meraki Cloud Managed MS250-24P Switch 24 Port Managed
Capacity
| Type | Forwarding table entries |
|---|---|
| Value | :16000 |
| Type | Tagged VLANs |
| Value | :4095 |
Dimensions & Weight
| Depth | :16.4 in |
|---|---|
| Height | :1.7 in |
| Weight | :10.58 lbs |
| Width | :19.1 in |
Environmental Parameters
| Humidity Range Operating | :5 – 95% (non-condensing) |
|---|---|
| Max Operating Temperature | :104 °F |
| Min Operating Temperature | :32 °F |
| Brand | Cisco Meraki |
|---|---|
| Compatibility | PC |
| Manufacturer | Meraki |
| Model | MS250-24P |
| Packaged Quantity | :1 |
| Product Line | Cisco Meraki Cloud Managed |
| Product Series | MS250 |
Interface Provided
| Comments | PoE+ |
|---|---|
| Connector Type | RJ-45 |
| PoE | Power :30 W |
| Qty | :24 Port |
| Type | :1000Base-T |
| Comments | Uplink |
| Connector Type | SFP+ |
| Qty | :4 SFP+ |
| Type | :10Gbit LAN |
Miscellaneous
| Authentication Method | RADIUS |
|---|---|
| Color Category | White |
| Compliant Standards | CSA, FCC, IC, RCM, RoHS |
| Height (Rack Units) | :1 |
| Mtbf | :403,717 hours |
