MS220-24P-HW Technical Specifications

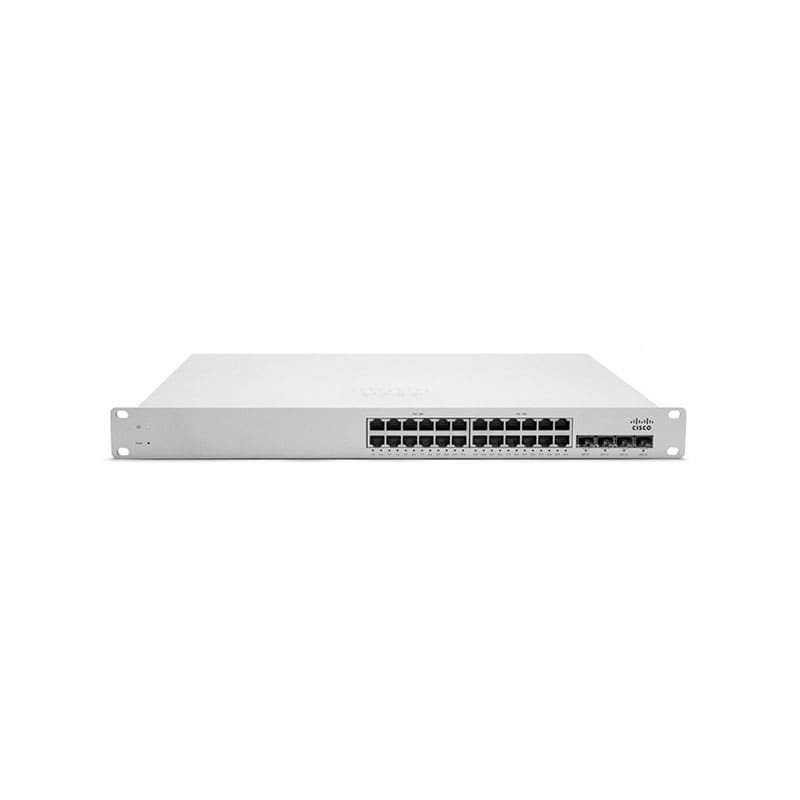

Cisco Meraki Cloud Managed MS220-24P Switch 24 ports Managed Rack-mountable
| Brand | Cisco Meraki |
|---|---|
| Manufacture Part Number | Cisco-MS220-24P-HW |
| Product Line | Cisco Meraki Cloud Managed |
| Model | MS220-24P |
| Manufacturer | Meraki |
Network & Communication
| Form Factor (Hubs & Switches) | Rack-mountable |
|---|---|
| Manageable | Yes |
| PoE Budget | 370 watt |
| Ports | 24 |
| Power Over Ethernet (PoE) | PoE+ |
| Product Type | Switch |
| Remote Management | TTP |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
Expansion Slots
| Expansion Slots | 4 SFP (mini-GBIC) |
|---|
Connectivity
| Interface Provided | 24 x 1000Base-T RJ-45 PoE+ – 25.5 W |
|---|---|
| Port Quantity | 24 |
| Port Type | 10/100/1000 (PoE+) |
| Ports Type (2nd) | SFP (mini-GBIC) |
Power
| Frequency | 50/60 hertz |
|---|---|
| Nominal Voltage | AC 120/230 V |
| Power Provided | 370 watt |
| Redundant Power Supply | Optional |
Technical Information
| Max Operating Temperature | 40 degree Celsius |
|---|---|
| Min Operating Temperature | 0 degree Celsius |
| Mtbf | 474,570 hour(s) |
| Operating Humidity | 5 – 95% (non-condensing) |
