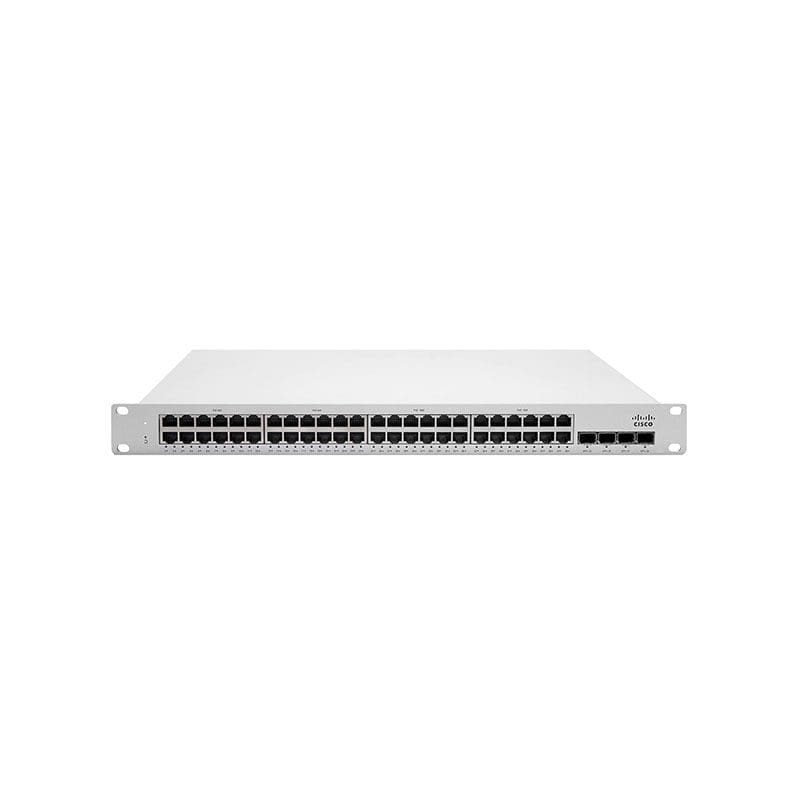

MS125-48FP-HW Technical Specifications
Cisco Meraki Cloud Managed MS125-48FP Switch 48 Port Managed
Capacity
| Type | VLANs supported |
|---|---|
| Value | :4094 |
Dimensions & Weight
| Depth | :13.4 in |
|---|---|
| Height | :1.7 in |
| Weight | :12.79 lbs |
| Width | :17.3 in |
Environmental Parameters
| Humidity Range Operating | :5 – 95% (non-condensing) |
|---|---|
| Max Operating Temperature | :104 °F |
| Min Operating Temperature | :32 °F |
| Brand | Cisco Meraki |
|---|---|
| Manufacturer | Meraki |
| Model | MS125-48FP |
| Packaged Quantity | :1 |
| Product Line | Cisco Meraki Cloud Managed |
| Product Series | MS125 |
Interface Provided
| Connector Type | RJ-45 |
|---|---|
| Qty | :48 Port |
| Type | :1000Base-T |
| Connector Type | SFP+ |
| Qty | :4 SFP+ |
| Type | :10Gbit LAN |
| Ethernet Technology | Gigabit Ethernet, 10 Gigabit Ethernet |
Miscellaneous
| Authentication Method | RADIUS |
|---|---|
| Color Category | White |
| Compliant Standards | CSA, FCC, IC, RCM, RoHS |
| Height (Rack Units) | :1 |
| Mtbf | :311,726 hours |
| Rack Mounting Kit | Included |
