MIC-3D-4CHOC3-2CHOC12 Technical Specifications

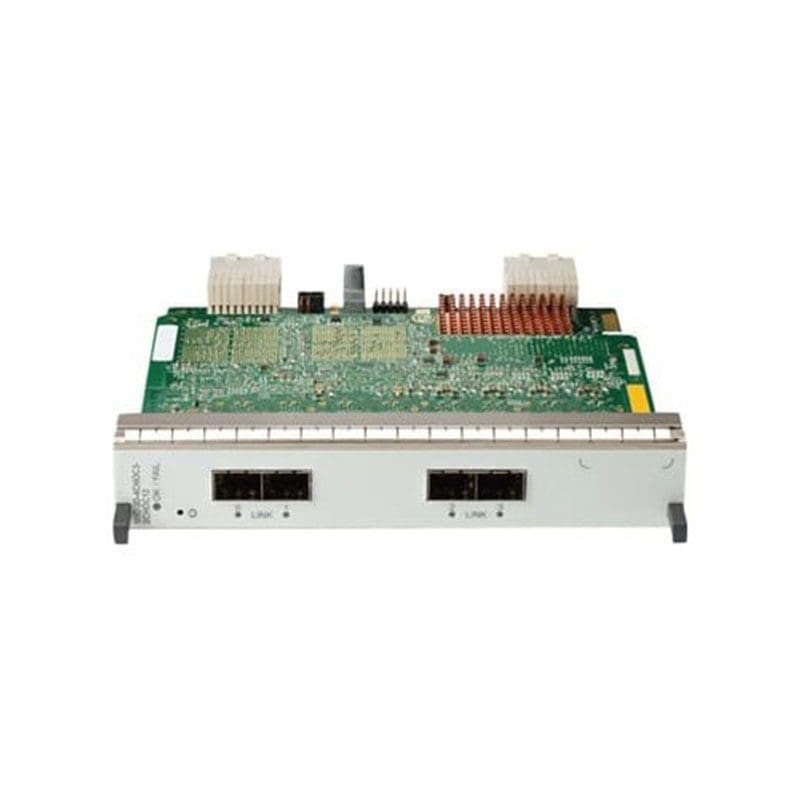

Juniper Networks Channelized Multiservice MIC expansion module 4 ports
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks Channelized |
| Model | Multiservice MIC |
| Packaged Quantity | :1 |
Line Properties
| Line Rate | OC-12/STM-4 |
|---|
Networking
| Type | Expansion module |
|---|---|
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Data Link Protocol | SONET/SDH |
| Features | MPLS support |
Expansion Slots
| Expansion Slots | :4 (total) / 4 (free) x SFP |
|---|
Slot Required
| Compatible Slots | :1 x Modular Interface Card (MIC) |
|---|
Power Device
| Power Consumption Operational | :41 watt |
|---|
Miscellaneous
| Compliant Standards | AS/NZ 3548 Class A, EN 61000-4-11, EN55022 Class A, EN 60825-1, EN 61000-4-2, EN 61000-3-2, EN 60950-1, VCCI Class A ITE, EN 61000-4-6, FCC Class A certified, BSMI Class A, EN 61000-4-4, EN 61000-4-5, EN 61000-3-3, UL 60950, EMI, EN 61000-4-3, EN 60825-2 |
|---|
