MG08SCA16TE Technical Specifications

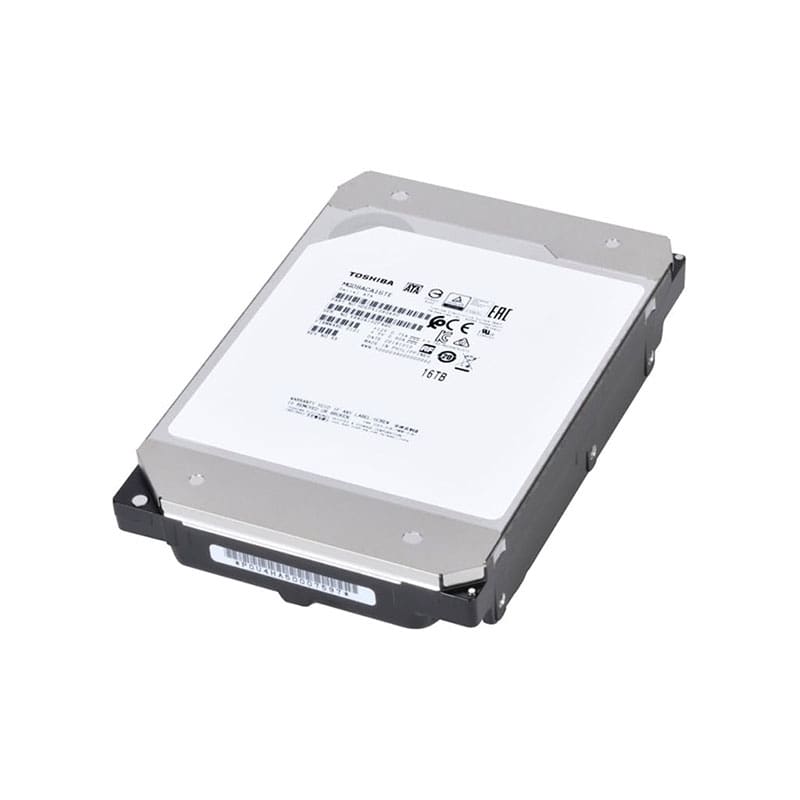

Toshiba MG08 Series – Hard Drive – 16 TB – SAS 12Gb/s
| Brand |
Toshiba |
| Product Line |
Toshiba MG08 Series |
| Model |
MG08SCA16TE |
| Manufacturer |
Toshiba Hard Drives |
Storage
| Buffer Size |
512 megabyte |
| Data Transfer Rate |
(Hard Drive) 1.2 GBps |
| Form Factor (Short) |
3.5″ |
| Form Factor (Short) (metric) |
8.9 cm |
| Hard Drive Capacity |
16 TB |
| Hard Drive |
Features |
24×7 availability, Advanced format 512e, Conventional magnetic recording (CMR), Helium Sealed-Drive Design, Persistent Write Cache technology, Power loss data protection
| Hard Drive |
Type |
| Internal |
hard drive |
| HD Interface |
- Serial Attached SCSI 3
- Load/Unload Cycles
- 600,000
- Non-Recoverable Errors
- 10 per 10^16
|
| Spindle Speed |
(rpm) |
| 7200 revolutions per minute |
| Storage |
Interface |
- Serial Attached SCSI 3
- 24×7 Operation
- Yes
Connectivity
Interface Provided
Technical Information
| Compatible Bay |
3.5″ |
| Hard Drive Form Factor |
3.5″ |
| Hard Drive Form Factor |
(metric) 8.9 cm |
| Max |
Operating Temperature |
| 131 degree Fahrenheit |
| Max |
Storage Temperature |
| 158 degree Fahrenheit |
| Min Operating Temperature |
- 41 degree Fahrenheit
- Min Storage Temperature
- -40 degree Fahrenheit
- MTBF
- 2,500,000 Hours
|
| Operating |
Humidity |
| 5 – 90% (non-condensing) |
| Shock |
Acceleration (Non-operating) |
| 250 gram |
| Shock |
Acceleration (Operating) |
| 70 gram |
| Shock |
Duration (Non-operating) 2 ms |
| Shock |
Duration (Operating) 2 ms |
| Vibration |
Acceleration (Non-operating) 3 gram |
| Vibration |
Acceleration (Operating) 0.75 gram |
| Vibration |
Frequency Range (Non-operating) 5-500 Hz |
| Vibration |
Frequency Range (Operating) 5-300 Hz |
Product Information
| Packaged Quantity |
1 |
| Product Type |
Hard drive |
Dimensions & Weight
| Height |
1 inch |
| Weight |
25.39 ounce |
| Width |
4 inch |
| Depth |
5.8 inch |
