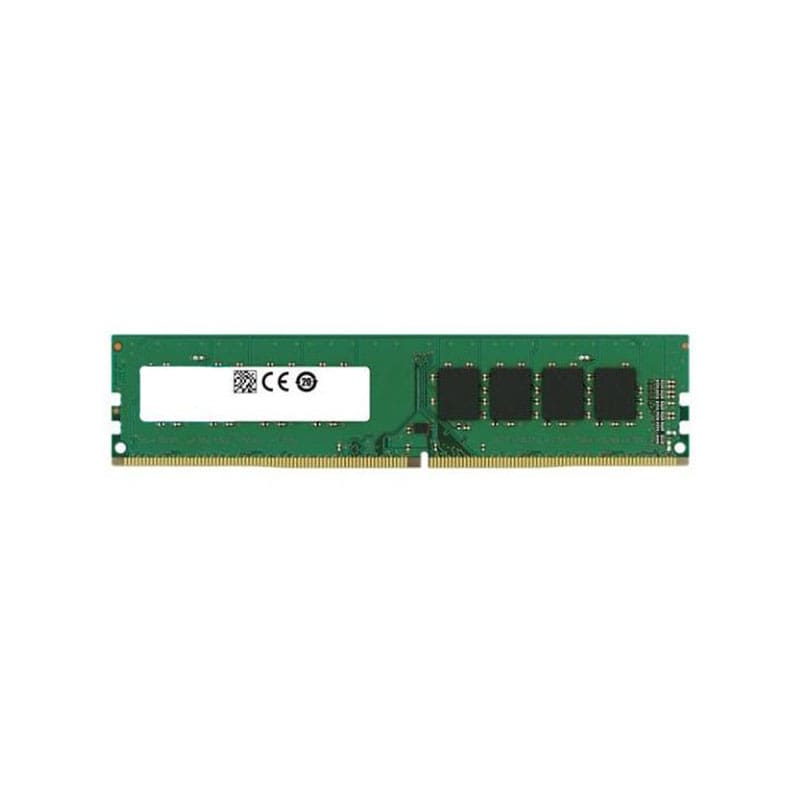

MEM-5100-16G Technical Specifications
Cisco 16GB PC4-23466U-R DDR4-2933MHz ECC CL22 288-Pin RDIMM 1.2V Rank 1 x4 Memory Module
| Product Name | 16G DDR4 DRAM DIMM for Cisco Encs 5100 |
|---|---|
| Product Type | RAM Module |
| Memory Technology | DDR4 SDRAM |
| Memory Size | 16 GB |
| Form Factor | DIMM |
| Device Supported | Enterprise Network Compute System |
| Number of Pins | 288-pin |
| Number of Modules | 1 x 16GB |
| Cycle Time | 0.682ns |
| Cas | CL21 |
| Rank | Rank 1 |
| Voltage | 1.2 |
| Error Correction | Registered ECC |
| Data Transfer Rate | 2933MHz |
| Weight | 0.1 lbs |
| Dimensions | 5.125 x 0.039 x 1.181 in |
| Height | STD |
| Rank | 4Rx4 |
