ME-4506E-S7L+96SFP Technical Specifications

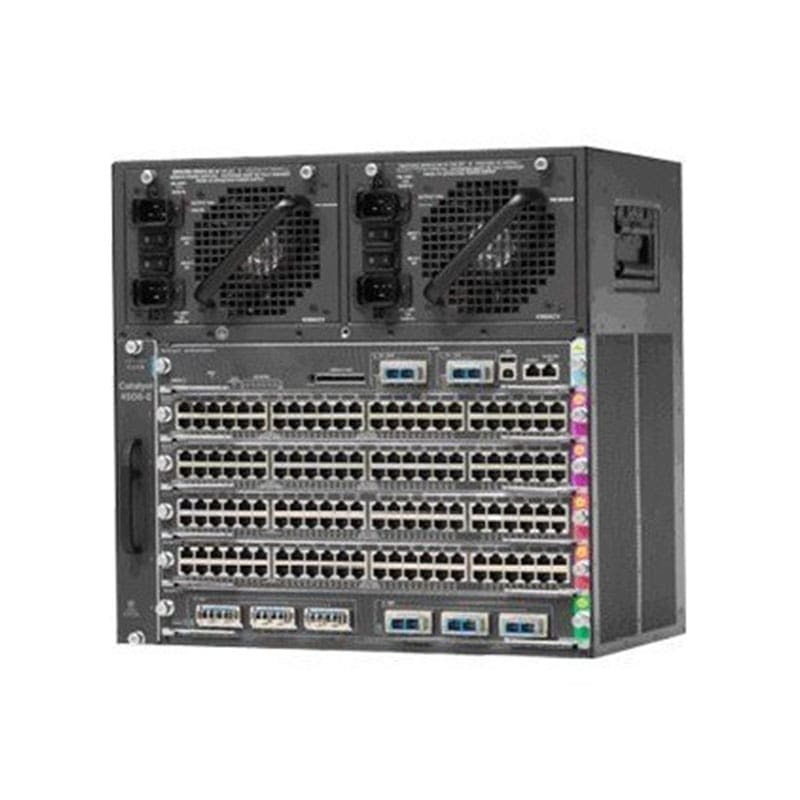

Cisco Catalyst 4506-E 10U RM Switch (1x)CPU 1.5GHz 2GB RAM 1GB Flash 96xSFP 2xSFP 2x10SFP+ Cisco IOS LAN
Features
| Manufacture Part Number | ME-4506E-S7L+96SFP |
|---|
Flow control
| Modular | design |
|---|---|
| Layer | 2 switching |
- IPv6 support
- Half and full duplex mode
- Spanning Tree Protocol (STP) support
Quality of Service (QoS)
| Jumbo Frames | support |
|---|
- MLD snooping
- PoE+
IPv4 support
| Link Aggregation | Control Protocol (LACP) |
|---|---|
| NetFlow | |
Specifications
| Switching capacity | 520 Gbps |
|---|---|
| Per-slot switching capacity | 48 Gbps |
| QoS hardware entries | 64000 |
| Security services entries | 64000 |
| Virtual interfaces (VLANs) | 4094 |
| IPv4 routes | 64000 |
| IPv6 routes | 32000 |
| Switched virtual interfaces (SVIs) | 4094 |
| NetFlow entries | 128000 |
| ARP entries | 47000 |
| MAC address table size | 55K entries |
| Jumbo frame support | 9216 bytes |
| Routing protocol | PIM-SSM |
Environmental properties
| Mtbf | 710,119 hours |
|---|
Memory
| RAM (installed) | 2GB |
|---|---|
| RAM Technology | SDRAM |
| Memory | Notes |
- 2GB SDRAM
- 1GB Flash Memory
- 1.5GHz Processor
