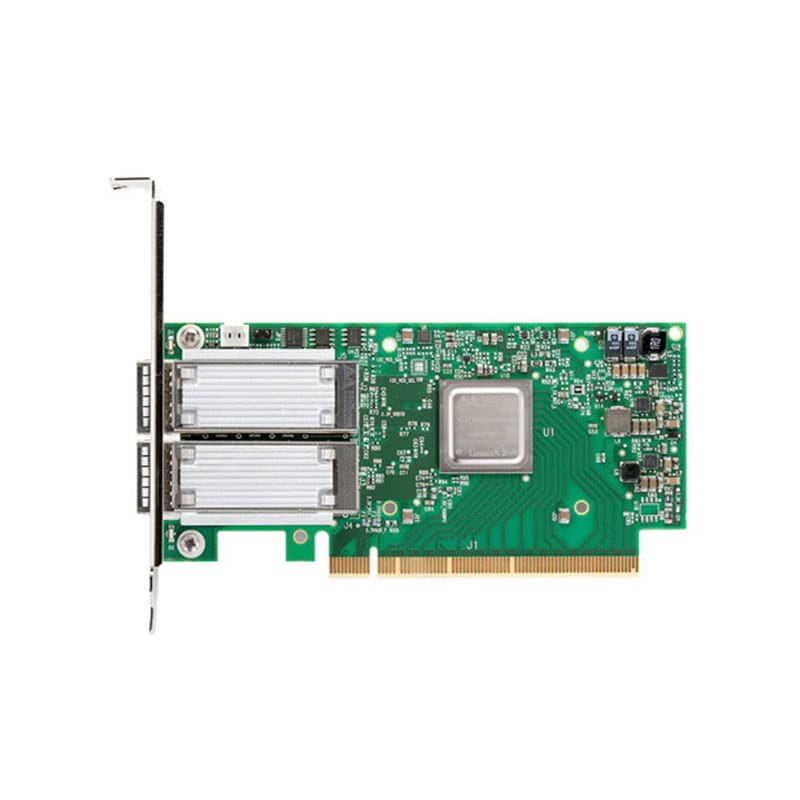

MCX512A-ACUT NVIDIA ConnectX-5 EN MCX512A-ACUT Network Adapter PCIe 3.0 x16 25 Gigabit SFP28 x 2
MCX512A-ACUT Overview
ConnectX-5 Ethernet network interface cards provide high performance and flexible solutions with two ports of 10/25 GbE connectivity, 750 ns latency, 200 million messages per second (Mpps), and a record setting 197 Mpps when running an open source Data Path Development Kit (DPDK) PCIe (Gen 4.0). For storage workloads, ConnectX-5 delivers a range of innovative accelerations, such as Signature Handover (T10-DIF) in hardware, an embedded PCIe Switch, and NVMe over Fabric target offloads. ConnectX-5 adapter cards also bring advanced Open vSwitch offloads to telecommunications and cloud data centers to drive extremely high packet rates and throughput with reduced CPU resource consumption, thus boosting data center infrastructure efficiency.
$355.00
MCX512A-ACUT Technical Specifications
NVIDIA ConnectX-5 EN MCX512A-ACUT Network Adapter PCIe 3.0 x16 25 Gigabit SFP28 x 2
| Brand | Mellanox |
|---|---|
| Product Line | NVIDIA ConnectX-5 EN |
| Model | MCX512A-ACUT |
| Manufacturer | Nvidia Corp |
Network & Communication
| Connectivity Technology | Wired |
|---|---|
| Data Link Protocols | 10 Gigabit Ethernet, 25 Gigabit Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 25 GBps |
| Form Factor | Plug-in card |
| Host Interface | PCI Express 3.0 x16 |
| Network Standard | iSCSI, TCP/IP, UDP/IP |
| PCI Specification Revision | PCIe 3.0 |
| Product Type | Network adapter |
Connectivity
| Interface Provided | 2 x 25Gb Ethernet – SFP28 |
|---|---|
| Port Quantity | 2 |
| Network & Adapter Ports | 25 Gigabit SFP28 |
Dimensions & Weight
| Height | 2.7 inch |
|---|---|
| Depth | 5.6 inch |
Physical Characteristics
| Color Category | Green, Silver |
|---|
Certifications & Listings
| Compliant Standards | RoHS 6/6 |
|---|---|
| ENERGY STAR Certified | No |
