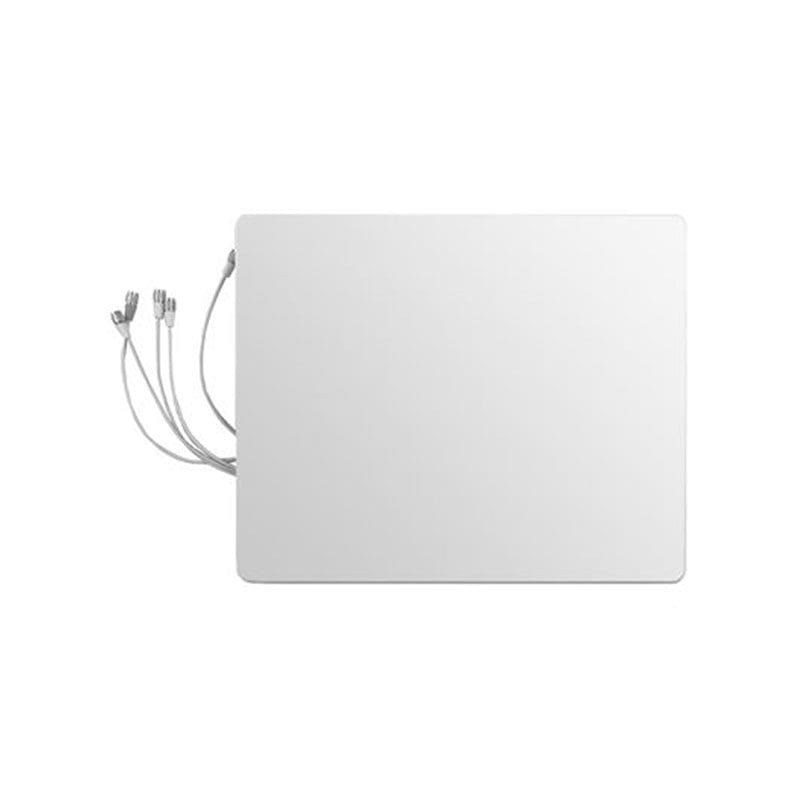

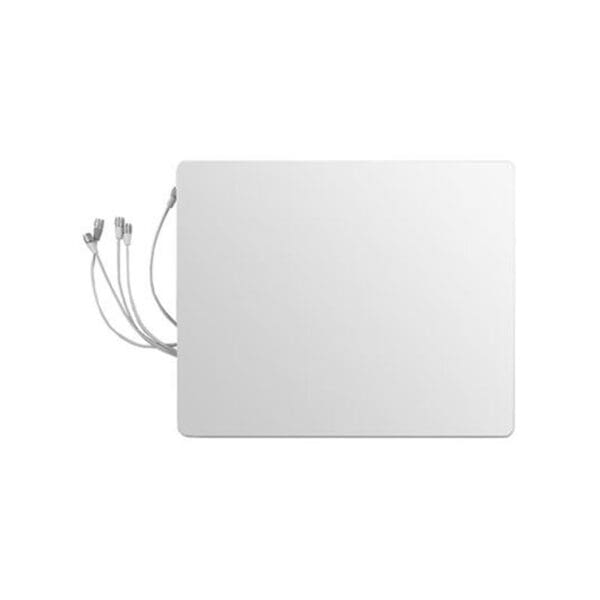

MA-ANT-3-F5 Technical Specifications
Cisco Meraki Antenna
General
| Category of Accessory | Antenna |
|---|---|
| Compatible With | Cisco Meraki MR42 |
Antenna
| Antenna Placing Mounting | Pole mount, Wall-mountable |
|---|---|
| Cable Length | :3.3 ft |
| Frequency Range | :2.4 – 2.5 GHz, 5.15 – 5.875 GHz |
| Gain | :10.8 dBi (for 5 GHz), 11.2 dBi (for 2.4 GHz) |
Horizontal Beamwidth :30°
| Intended For | Wi-Fi |
|---|---|
| Vertical | Beamwidth :30° |
Environmental Parameters
| Humidity Range Operating | :5 – 93% |
|---|---|
| Max Operating Temperature | :104 °F |
| Min Operating Temperature | :32 °F |
| Brand | Cisco Meraki |
|---|---|
| Manufacturer | Meraki |
| Packaged Quantity | :1 |
| Product Line | Cisco Meraki |
Interface Provided
| Connector Qty | :5 |
|---|---|
| Connector Type | RP-TNC Connector |
Miscellaneous
| Color Category | White |
|---|---|
| Features | Tilt adjustment +45° to -45° |
| Mounting Kit | Included |
| Product Material | ABS plastic |
| Product Type | Antenna |
