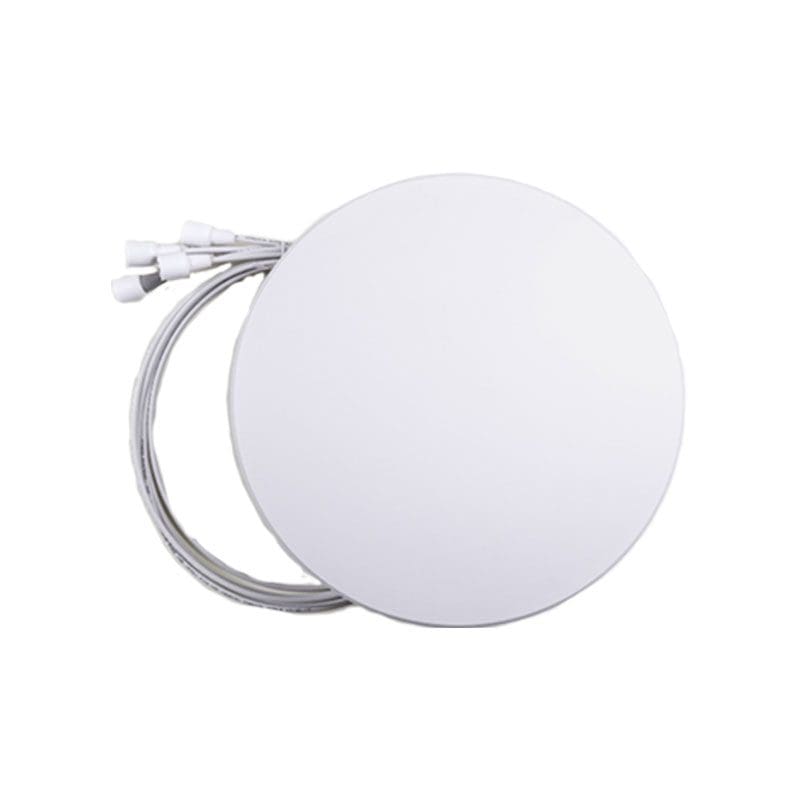

MA-ANT-3-C5 Cisco Meraki Antenna

Brand:

MA-ANT-3-C5 Overview

The Panel Omni antenna is ideal for low ceiling aesthetic consensus installations where wall penetration or extended reach are important. Some example uses are low density deployments like schools and hotels to provide basic low performance connectivity. These types of best effort deployments usually have APs installed in the hallway to cover adjacent rooms. This antenna supports Meraki’s smart antenna capabilities.

$312.00

Shipping calculated at checkout.
or
SKU: MA-ANT-3-C5 Categories: Brand:

MA-ANT-3-C5 Technical Specifications

Cisco Meraki Antenna

General

Category of Accessory Antenna

Miscellaneous

Compatible With Cisco Meraki MR42

Antenna

Antenna Placing Mounting Ceiling mountable, Pole mount, Wall-mountable
Cable Length :3.3 ft
Directivity Omni-directional
Form Factor Panel
Frequency Range :2.4 – 2.5 GHz, 5.15 – 5.875 GHz
Gain :4.9 dBi

Horizontal Beamwidth :360°

Intended For Wi-Fi
Vertical Beamwidth :60°

Environmental Parameters

Humidity Range Operating :5 – 95%
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Brand Cisco Meraki
Manufacturer CISCO DS HARDWARE DIRECT
Packaged Quantity :1
Product Line Cisco Meraki

Interface Provided

Connector Qty :5
Connector Type RP-TNC Connector

Miscellaneous

Color Category White
Product Material ABS plastic
Product Type Antenna
