MA-ANT-3-A5 Technical Specifications

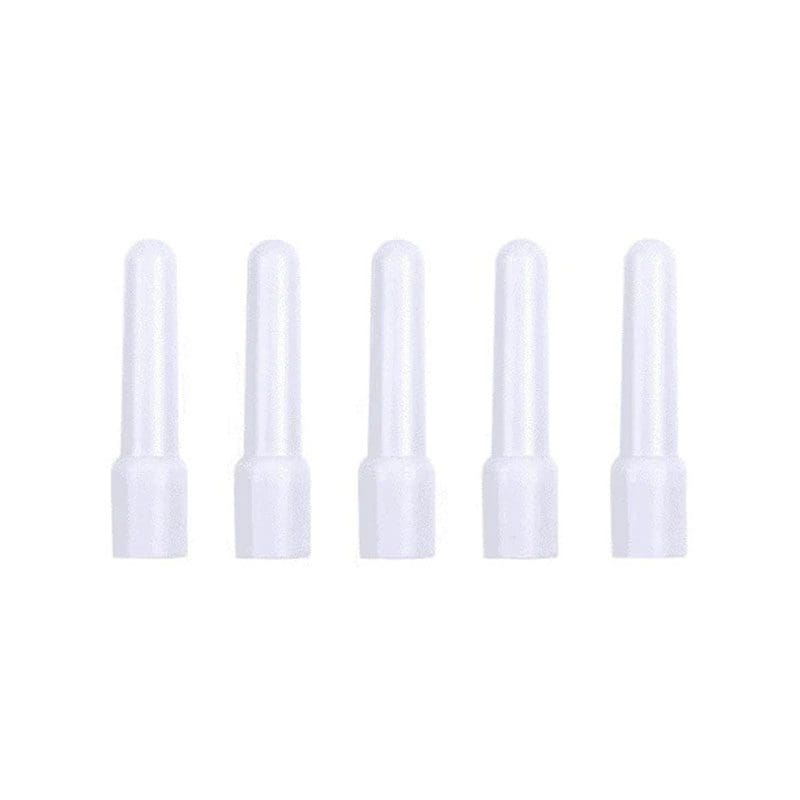

Cisco Meraki MA-ANT-3-A5 Antenna
General
| Category of Accessory | Antenna |
|---|
Miscellaneous
| Compatible With | Cisco Meraki MR42 |
|---|
Antenna
| Antenna Placing Mounting | Indoor |
|---|---|
| Directivity | Omni-directional |
| Form Factor | Dipole |
| Frequency Range | :2.4 – 2.5 GHz, 5.15 – 5.875 GHz |
| Gain | :3.8 dBi (for 2.4 GHz), 5.5 dBi (for 5 GHz) |
Horizontal Beamwidth :360°
| Vertical | Beamwidth :40° |
|---|
Environmental Parameters
| Humidity Range Operating | :5 – 95% |
|---|---|
| Max Operating Temperature | :104 °F |
| Min Operating Temperature | :32 °F |
| Brand | Cisco Meraki |
|---|---|
| Manufacturer | Meraki |
| Packaged Quantity | :5 |
| Product Line | Cisco Meraki |
Interface Provided
| Connector Qty | :1 |
|---|---|
| Connector Type | RP-TNC Connector |
Miscellaneous
| Color Category | White |
|---|---|
| Features | Horizontal polarisation, Vertical polarisation |
| Product Material | PC/ABS |
| Product Type | Antenna |
