MA-ANT-27 Technical Specifications

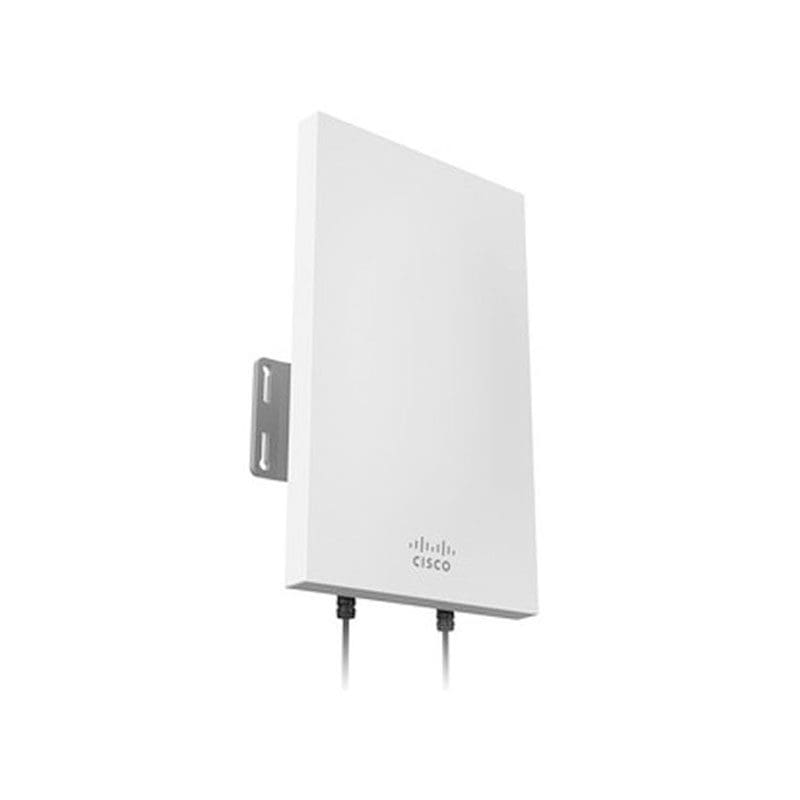

Cisco Meraki Dual-Band Sector Antenna
General
| Category of Accessory | Meraki |
|---|---|
| Package Content | Antenna cable |
Antenna
| Antenna Placing Mounting | Indoor, Outdoor, Pole mount, Wall-mountable |
|---|---|
| Directivity | Directional |
| Frequency Range | :2.4 – 2.5 GHz, 5.15 – 5.875 GHz |
| Gain | :12 dBi, 9 dBi |
Horizontal Beamwidth :65°, 86°
| Vertical | Beamwidth :18°, 34° |
|---|
Environmental Parameters
| Max Operating Temperature | :158 °F |
|---|---|
| Min Operating Temperature | -40 °F |
| Brand | Cisco Meraki |
|---|---|
| Manufacturer | CISCO DS HARDWARE DIRECT |
| Model | Dual-Band Sector Antenna |
| Packaged Quantity | :1 |
| Product Line | Cisco Meraki |
Interface Provided
| Connector Qty | :2 |
|---|---|
| Connector Type | N-Series connector |
Miscellaneous
| Mounting Kit | Included |
|---|---|
| Product Material | Plastic |
| Product Type | Antenna |
