Refurbished M7IE-AC-RE400-1GEB Juniper Networks M-series
Refurbished M7IE-AC-RE400-1GEB Overview
The M7i platform is an ideal enterprise routing solution for head offices, campuses and corporate backbones needing reliable, secure and high performance IP WAN connectivity, internet access and services. Unlike legacy routers, which have monolithic architectures and aging operating systems, the M7i Multiservice router boasts a hardware based architecture and JUNOS, a modern object oriented operating system. This architecture and JUNOS ensures rich packet processing with uncompromising forwarding performance to support latency sensitive applications such as voice, video, and mission critical applications. The M7i router is the choice for consolidating multiple services onto a single IP/MPLS network and delivering performance, reliability, and security to the enterprise environment.
$1,030.00
Refurbished M7IE-AC-RE400-1GEB Technical Specifications

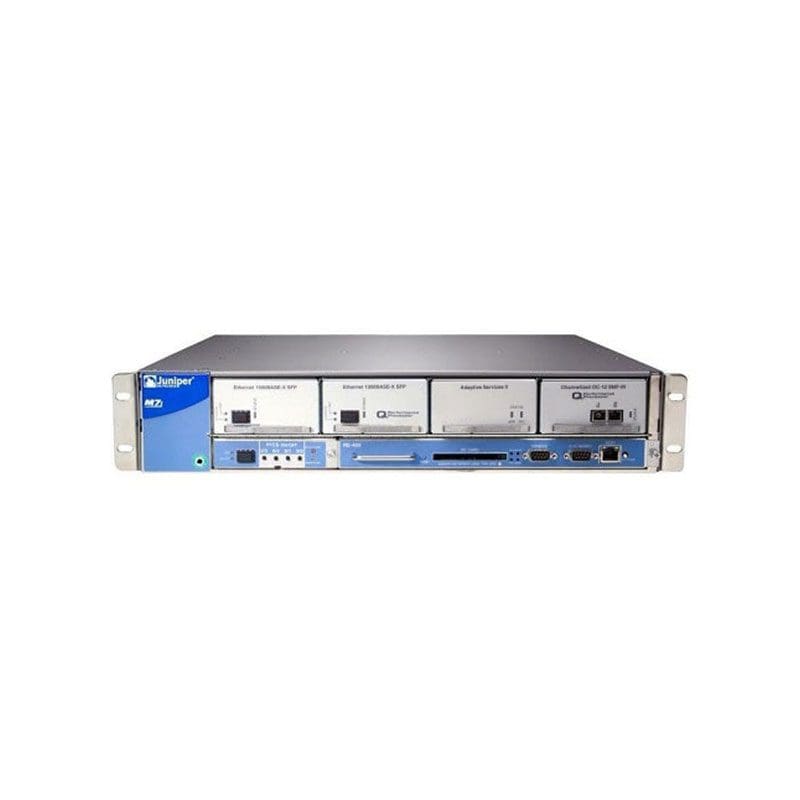

Juniper Networks M-series M7i router desktop
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks M-series |
| Model | M7i |
| Packaged Quantity | :1 |
Chassis
- Installed Devices / Modules Qty :0
- Supported Devices / Modules Qty :4
Processor
| Installed Qty | :1 |
|---|---|
| Clock Speed | :400 megahertz |
RAM
| Installed Size | :768 megabyte |
|---|
Performance
| Performance :Throughput | 10 Gbps |
|---|
Networking
| Type | Router |
|---|---|
| Form Factor | Desktop |
| Modular | Modular |
| Connectivity Technology | Wired |
| Data Link Protocol | PPP, Gigabit Ethernet, RS-232, RS-530, RS-449, V.35, ATM, HDLC, X.21, Frame Relay, MLPPP, FRF.15, FRF.16, Ethernet |
| Routing Protocol | Static IP routing, BGP, RIP-2, PIM-DM, PIM-SM, DVMRP, OSPF, IGMPv3, IS-IS, MPLS, PIM-SSM |
| Network / Transport Protocol | PPPoA, IPSec, RSVP, L2TP, TCP/IP |
| Remote Management Protocol | SNMP 3, HTTP, SNMP 2 |
| Status Indicators | Alarm, Link/activity, Link OK, Fail |
| Key Features | Firewall, VPN support |
| Features | MPLS support, DHCP support, DDos attack prevention, DiffServ support, Layer 3 switching, Firmware upgradable, Layer 2 switching, IPv4 support, Midplane, VLAN support, DHCP relay, Traffic shaping, NAT support, Firewall protection, 168-bit encryption, Syslog support, 56-bit encryption, Modular design, DoS attack prevention, IPv6 support, Hot swap module replacement, VPN support, Packet filtering, High Availability |
| Compliant Standards | IEEE 802.1Q |
Expansion Slots
| Expansion Slots | :1 (total) / 1 (free) x PC Card, 4 (total) / 4 (free) x expansion slot |
|---|
Interface Provided
| Interfaces :1 x SFP (mini-GBIC), Management | 1 x 10Base-T/100Base-TX – RJ-45, Management: 2 x RS-232 – 9 pin D-Sub (DB-9) |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Hot-Plug | Hot-plug |
| Power Redundancy | Yes |
| Installed Qty | :1 |
| Max Supported Qty | :2 |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | :50/60 hertz |
Miscellaneous
| Encryption Algorithm | DES, MD5, Triple DES, SHA-1 |
|---|---|
| Authentication Method | RADIUS |
| Compliant Standards | EN 60950, IEC 825-1/EN 60825-1 class 1, EN 61000-4-6, EN 61000-4-4, EN 61000-3-2, CSA C22.2 No. 60950-00, EN 61000-4-3, EN 61000-4-5, EN 61000-4-2, EN 61000-4-11, VCCI Class B ITE, FCC Part 15 B, EN55022 Class B, AS/NZ 3548 Class B, UL 60950, BSMI |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :18 inch |
| Height | :3.5 inch |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :5 – 90% (non-condensing) |
