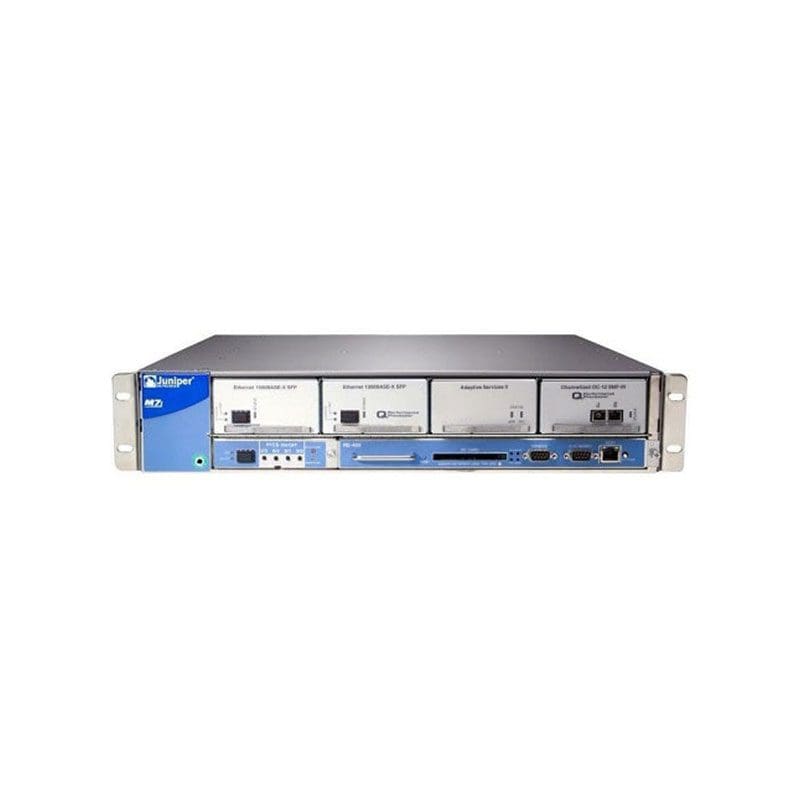

Refurbished M7IE-AC-RE1800-1GE-B Technical Specifications
Juniper Networks M-series M7i router rack mountable
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks M-series |
| Model | M7i |
| Packaged Quantity | :1 |
Chassis
| Built-in Devices | Midplane |
|---|
- Installed Devices / Modules Qty :2
- Supported Devices / Modules Qty :6
Processor
| Installed Qty | :1 |
|---|---|
| Clock Speed | :1.8 GHZ |
Line Properties
| Line Rate | OC-192/STM-64 |
|---|
Performance
| Performance | Throughput: |
|---|
Networking
| Type | Router |
|---|---|
| Form Factor | Rack-mountable |
| Modular | Modular |
| Connectivity Technology | Wired |
| Data Link Protocol | Fast Ethernet, PPP, X.21, ATM, Ethernet, RS-449, HDLC, RS-232, SONET/SDH, Frame Relay, V.35, Gigabit Ethernet, TDM |
| Routing Protocol | BGP, RIP-2, GRE, MPLS, OSPF, IGMPv3, Static IP routing, IS-IS, VRRP, Bidirectional Forwarding Detection (BFD) |
| Network / Transport Protocol | IPSec, PPPoA, RSVP, DHCP |
| Remote Management Protocol | SNMP 2, SNMP 3, HTTP, CLI |
| Data Transfer Rate | :10 GBps |
| Key Features | VPN support |
| Features | Tagged VLAN, IPv4 support, Hot swap module replacement, High Availability, Layer 2 switching, Manageable, ASIC VPN, DiffServ support, VLAN support, Layer 3 switching, DHCP relay, Link Aggregation Control Protocol (LACP), DDos attack prevention, Syslog support, Weighted Random Early Detection (WRED), Class of Service (CoS), Tunneling, Asynchronous Transfer Mode (ATM), Modular design, Packet filtering, DoS attack prevention, VPN support, Firmware upgradable, MPLS support, IPv6 support, NAT support, Quality of Service (QoS), GRE tunneling, Layer 2.5 switching, Automatic Protection Switching (APS) |
| Compliant Standards | IEEE 802.3ad (LACP), IEEE 802.1Q |
Expansion Slots
| Expansion Slots | :4 (total) / 4 (free) x expansion slot, 2 (total) / 0 (free) x Services and Routing Engine (SRE) |
|---|
Interface Provided
| Interfaces | :1 x 1000Base-X – SFP (mini-GBIC) |
|---|
OS Provided
| Type | JUNOS |
|---|
Power Device
| Type | Internal power supply |
|---|---|
| Power Redundancy | Yes |
| Installed Qty | :1 |
| Max Supported Qty | :2 |
| Power Provided | :400 watt |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | :50/60 hertz |
Miscellaneous
| Encryption Algorithm | SHA-1, MD5 |
|---|---|
| Authentication Method | RADIUS |
| Compliant Standards | EN 60825-2, EN 61000-4-4, EN 61000-4-3, EN 61000-3-2, EN 61000-4-2, EN 61000-4-5, UL 60950, GR-63-CORE, ETSI, GR-1089-CORE, EN 60950, FCC Part 15 B, EN55022 Class B, EN 60825-1, AS/NZS 3548 Class B, EN 61000-4-6, CSA C22.2 No. 60950-00, EN 61000-3-3, BSMI Class B, NEBS level 3, VCCI Class B, EN 61000-4-11 |
Dimensions & Weight
| Width | :17.5 inch |
|---|---|
| Depth | :18 inch |
| Height | :3.5 inch |
Environmental Parameters
| Min Operating Temperature | :32 degree Fahrenheit |
|---|---|
| Max Operating Temperature | :104 degree Fahrenheit |
| Humidity Range Operating | :5 – 90% (non-condensing) |
