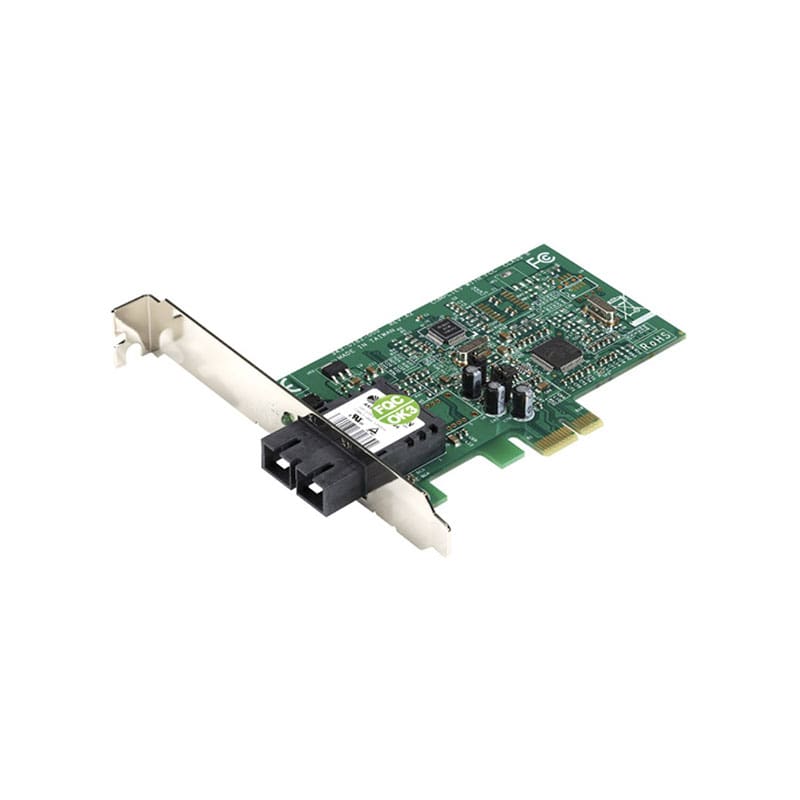

LH1390C-SC-R2 Black Box Fiber Adapter Network Adapter PCIe
LH1390C-SC-R2 Overview
PCI-Express (PCI-E) 1.0 compliant card installs easily in a PCI-E slot and includes Microsoft® certified drivers
Equipped with SC connector for multimode fiber
Ideal for users with older 100-Mbps fiber cards who want to upgrade to PCI-E for better performance and bandwidth
VLAN filtering packet processing gives you improved performance, flexible configuration, and secure networking in a standard-based environment
Supports IEEE 802.3x full-duplex flow control and asymmetric/symmetric flow control
Also supports multicast frame filtering and 802.1q VLAN tagging
Wake-on-LAN (WoL) capability and PXE remote boot support
Fiber is ideal for industrial, electronically noisy areas, and secure government networks
RoHS compliant
$136.00
Shipping calculated at checkout.
LH1390C-SC-R2 Technical Specifications
Black Box Fiber Adapter Network Adapter PCIe
| Brand | Black Box |
|---|---|
| Manufacture Part Number | LH1390C-SC-R2 |
| Product Line | Black Box |
| Model | Fiber Adapter |
| Manufacturer | Black Box |
Network & Communication
| Cable Type | Ethernet 100Base-FX |
|---|---|
| Compliant Standards | IEEE 802.1Q, IEEE 802.3u, IEEE 802.3x |
| Connectivity Technology | Wired |
| Data Link Protocols | Fast Ethernet |
| Data Transfer Rate | 100 MBps |
| Features | Flow control, Full duplex capability, Packet filtering, Tagged VLAN, VLAN support, Wake On LAN (WOL) |
| Form Factor | Plug-in card |
| Host Interface | PCI Express |
| Optical Wave Length | 1310 nm |
| PCI Specification Revision | PCIe 1.0 |
| Product Type | Network adapter |
| Status Indicators | Link/activity |
Connectivity
| Interface Provided | 1 x 100Base-FX – SC multi-mode – x 2 |
|---|
Power
| Power Consumption Operational | 3 watt |
|---|
Product Information
| Packaged Quantity | 1 |
|---|
Certifications & Listings
| Compliant Standards | EMI, FCC Class B certified, RoHS |
|---|---|
| ENERGY STAR Certified | No |
