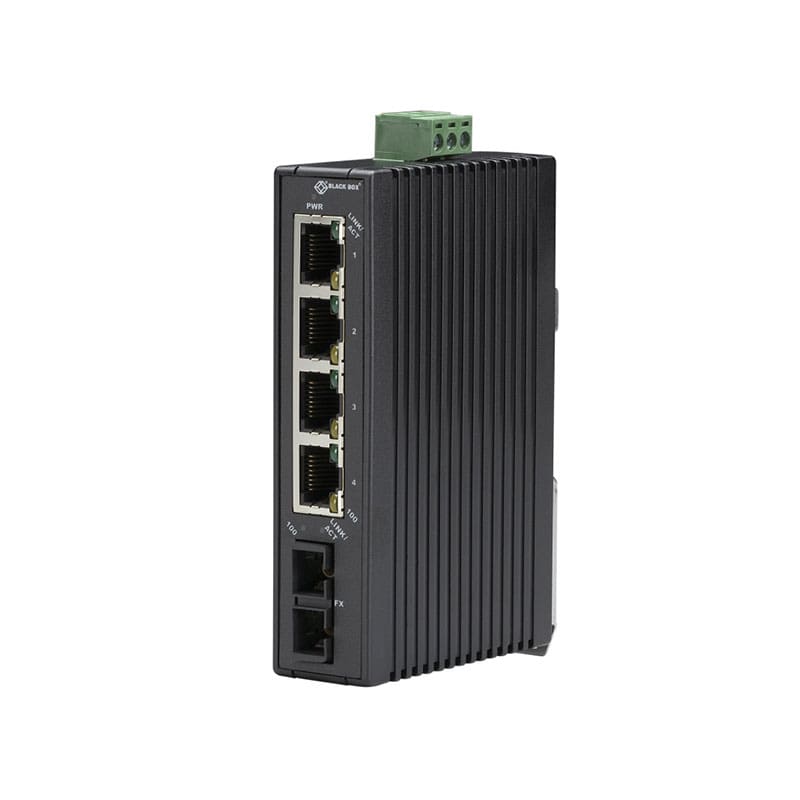

LBH120A-H Black Box Hardened Mini Industrial Switch 5 ports
LBH120A-H Overview
Adds four 10-/100-Mbps ports to your network.
Features an industrial-strength plastic case and complies with IEC 61000-Part 6-2 generic standards for electromagnetic compatibility (EMC) in industrial environments.
Offers full wire-speed forwarding rates across the network.
Auto MDI/MDI-X copper ports autonegotiate for 10-/100-Mbps speed and autodetect full- or half-duplex mode.
$119.00
Shipping calculated at checkout.
LBH120A-H Technical Specifications
Black Box Hardened Mini Industrial Switch 5 ports
| Brand | Black Box |
|---|---|
| Product Line | Black Box Hardened Mini Industrial |
| Manufacturer | Black Box |
Network & Communication
| Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u |
|---|---|
| Features | Auto-negotiation, Auto-sensing per device, Flow control |
| Form Factor (Hubs & Switches) | DIN rail mountable |
| MAC Address Table Size | 2K entries |
| Ports | 5 |
| Product Type | Switch |
| Status Indicators | Link/activity, Port status, Power |
| Subcategory | Network hubs and switches |
| Switching Type | Fast Ethernet |
Connectivity
| Port Quantity | 5 |
|---|---|
| Port Type | 10/100 |
Technical Information
| Max Operating Temperature | 140 degree Fahrenheit |
|---|---|
| Min Operating Temperature | -13 degree Fahrenheit |
Product Information
| Packaged Quantity | 1 |
|---|
Dimensions & Weight
| Height | 4.3 inch |
|---|---|
| Weight | 7.05 ounce |
| Width | 1 inch |
| Depth | 2.8 inch |
Certifications & Listings
| Compliant Standards | IEC 60529 IP30 |
|---|
