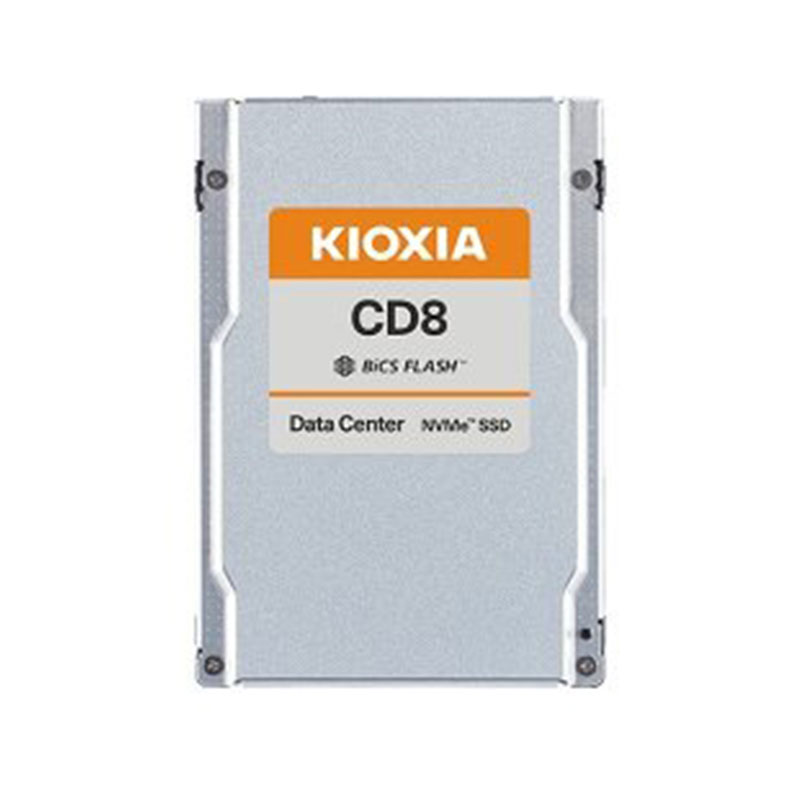

KCD8XRUG7T68 Kioxia CD8-R Series 7.68TB TLC PCIe NVMe 4.0 2.5-Inch SSD
KCD8XRUG7T68 Overview
The Kioxia CD8-R 7.68TB (Model: KCD8XRUG7T68) is a high-performance, data center-class NVMe SSD designed specifically for read-intensive applications. As part of the CD8-R series, this drive leverages the PCIe Gen4 x4 interface to provide massive throughput and significantly lower latency compared to legacy SATA and SAS storage. Built with Kioxia’s advanced BiCS FLASH™ 3D TLC technology, the CD8-R is optimized for cloud computing, content delivery networks (CDNs), and virtualization environments where high-speed data access and storage density are critical.
$2,699.00
Shipping calculated at checkout.
KCD8XRUG7T68 Technical Specifications
Kioxia CD8-R Series 7.68TB TLC PCIe NVMe 4.0 x4 Read Intensive 2.5-Inch Solid State Drive
| Manufacturer | Kioxia |
|---|---|
| Manufacture Part Number | KCD8XRUG7T68 |
| Series | CD8-R (Read Intensive) |
| Storage Capacity | 7.68 Terabytes (7.68TB) |
| Interface Type | PCIe Gen4 x4, NVMe 1.4 |
| Form Factor | 2.5-inch (15mm Z-height) |
| Connector Type | U.3 (Compatible with U.2 slots) |
| NAND Flash Type | BiCS FLASH™ 3D TLC |
| Performance | Metrics |
| Sequential Read Speed | Up to 7,200 MB/s |
| Sequential Write Speed | Up to 6,000 MB/s |
| Random Read (4KB) | Up to 1,250,000 IOPS |
| Random Write (4KB) | Up to 200,000 IOPS |
| Latency (Read/Write) | 75 µs / 10 µs (Typical) |
Reliability & Endurance
| Endurance (DWPD) | 1 Drive Write Per Day |
|---|---|
| Total Bytes Written (TBW) | 14,016 TB |
| End-to-End Data Protection | Yes |
| Power Loss Protection (PLP) | Yes |
Power & Environmental
| Idle Power Consumption | 5 Watts (Typical) |
|---|---|
| Operating Temperature | 0°C to 70°C |
