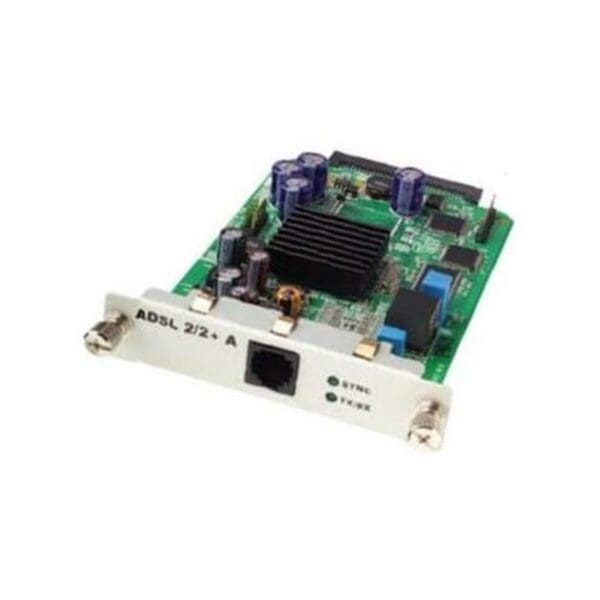

JXM-1ADSL2-B-S Technical Specifications
Netscreen 1 port ADSL2+ Annex B Mini Physical Interface Module
| Manufacturer | Netscreen |
|---|---|
| Brand | Juniper, Juniper Networks |
| Product Line | Juniper Networks |
| Model | ADSL2/2+ Mini-Physical Interface Module (Mini-PIM) |
| Packaged Quantity | :1 |
Modem
| Type | DSL modem |
|---|---|
| Form Factor | Internal |
| Connectivity Technology | Wired |
| Digital Signaling Protocol | ADSL over ISDN, ADSL2+, ADSL, ADSL2 |
| Protocols & Specifications | ITU G.992.3 (G.DMT.bis), ITU G.992.5, ITU G.994.1 (G.hs), ITU G.992.1 (G.DMT) Annex B |
Line Properties
| Framing Format | ANSI T1.413 |
|---|
Networking
| Data Link Protocol | ATM, MLPPP |
|---|---|
| Network / Transport Protocol | AAL5 |
| Remote Management Protocol | HTTP, Telnet |
| Features | Manageable |
Interface Provided
| Interfaces | :1 x modem – ADSL2+ – RJ-45 |
|---|
Slot Required
| Compatible Slots | :1 x expansion slot |
|---|
System Requirements
| OS Required | ScreenOS |
|---|
